Saeco TALEA - 5.2.1 Test Mode Talea Ring Ring Plus

Saeco International Group Page 3 / 17
TALEA / ODEA - LINE 05 SERVICE MODALITY
Function level/display Key Function Display/description
*Test* M0 Key check / time / software version / mains frequency
* Test* M0 (12345) time
Ver.00.00.00 50/60Hz
Steam
Hot water
Aroma
Menu
Coffee/Start
Keypad check 1: Steam key OK
2: Hot water key OK
3: Aroma key OK
4: Menu key OK
5: Coffee/Start key OK
*Test* M1 Sensor/microswitch test (can only be carried out manually)
*Test* M1 time
Inputs(123456789ABCDEFGH)
Sensor/
microswitch test
1: Brewing unit microswitch
2: Brewing position gearing
mechanism micro
3: Home position of gearing
mechanism micro
4: Flowmetre (Hall sensor)
5: Water tank sensor (capacitive)
6: Door switch (reed sensor)
7: Dreg tray (reed sensor)
8: Bean cover (reed sensor)
9: Coffee grinder (Hall sensor)
A: Drip tray sensor (capacitive)
B: Hot water / steam valve Sensor
pos. Milk Island
C: Hot water / steam valve Sensor
pos. Water/steam
D: Milk Island (adapter) detected
E: Carafe microswitch
F: Cup lift, bottom end switch
G: Cup lift, top end switch
H: Hot water / steam valve Sensor
pos. closed
*Test* M2 Test: Brewing unit test (power input / microswitch)
*Test* M2 (6712) mA going
to work xxx
Menu Brewing unit up
Brewing position microswitch 2
xxx Power consumption of gear motor
*Test* M2 (6713) mA going to
home xxx
Aroma Brewing unit
down
Home position microswitch 3
xxx Power consumption of gear motor

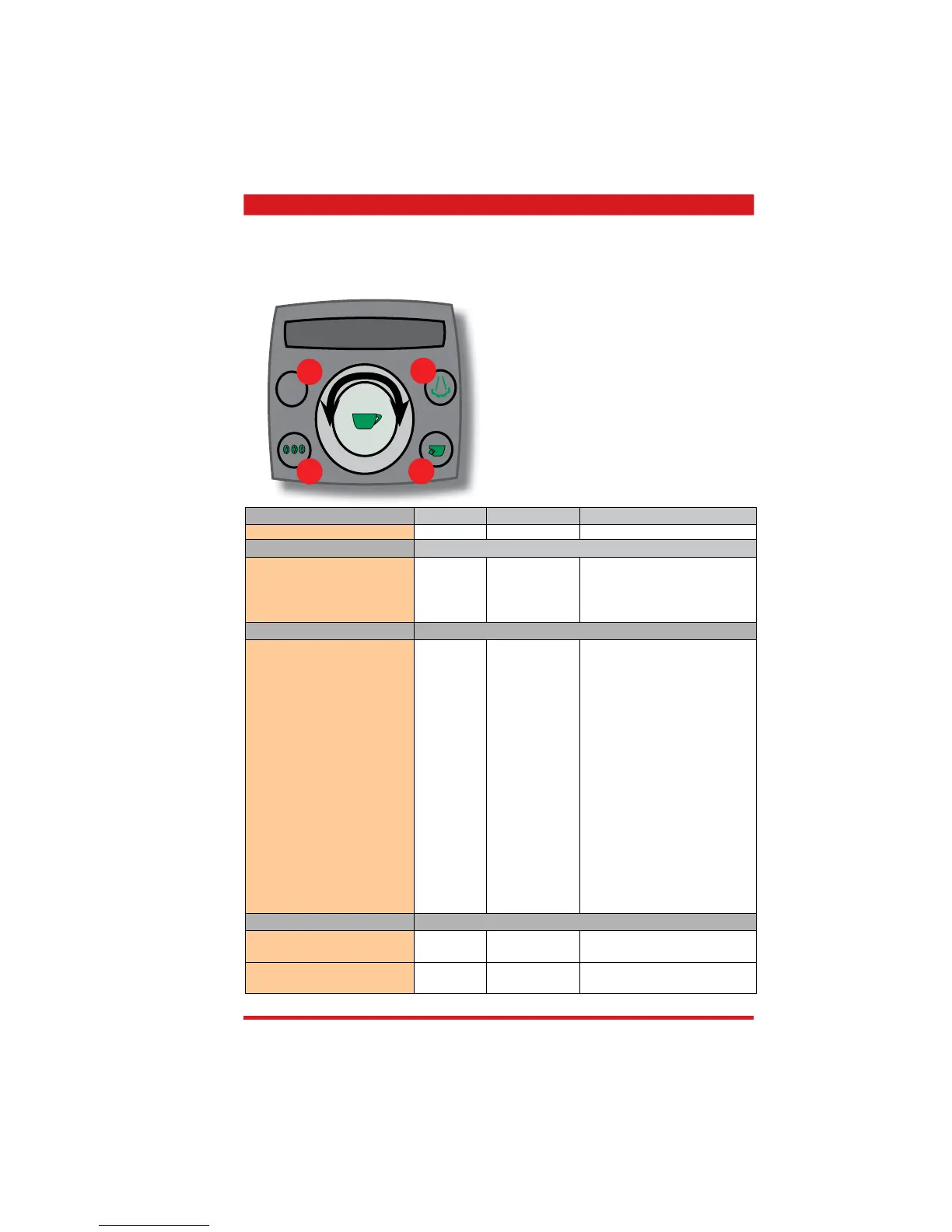

5.2.1 Test mode - Talea Ring and Ring Plus
Getting started with test mode:
• Turn on the appliance.
• Keep the menu key pressed for approx.
2 seconds until "Cancel" appears in the
display.
• Then press the aroma, steam, menu and hot
water keys in that order (1,2,3,4).
Navigation:
• Use the ring function to move through the
menu levels.
• Activate each function with the relevant key.
• Adjust with the ring.
• Save with the coffee/start key.
EXIT
MENU
1
2
3
4
