Saeco TALEA - Pump; Hose Connections (Assembly)

Saeco International Group Page 7 / 13

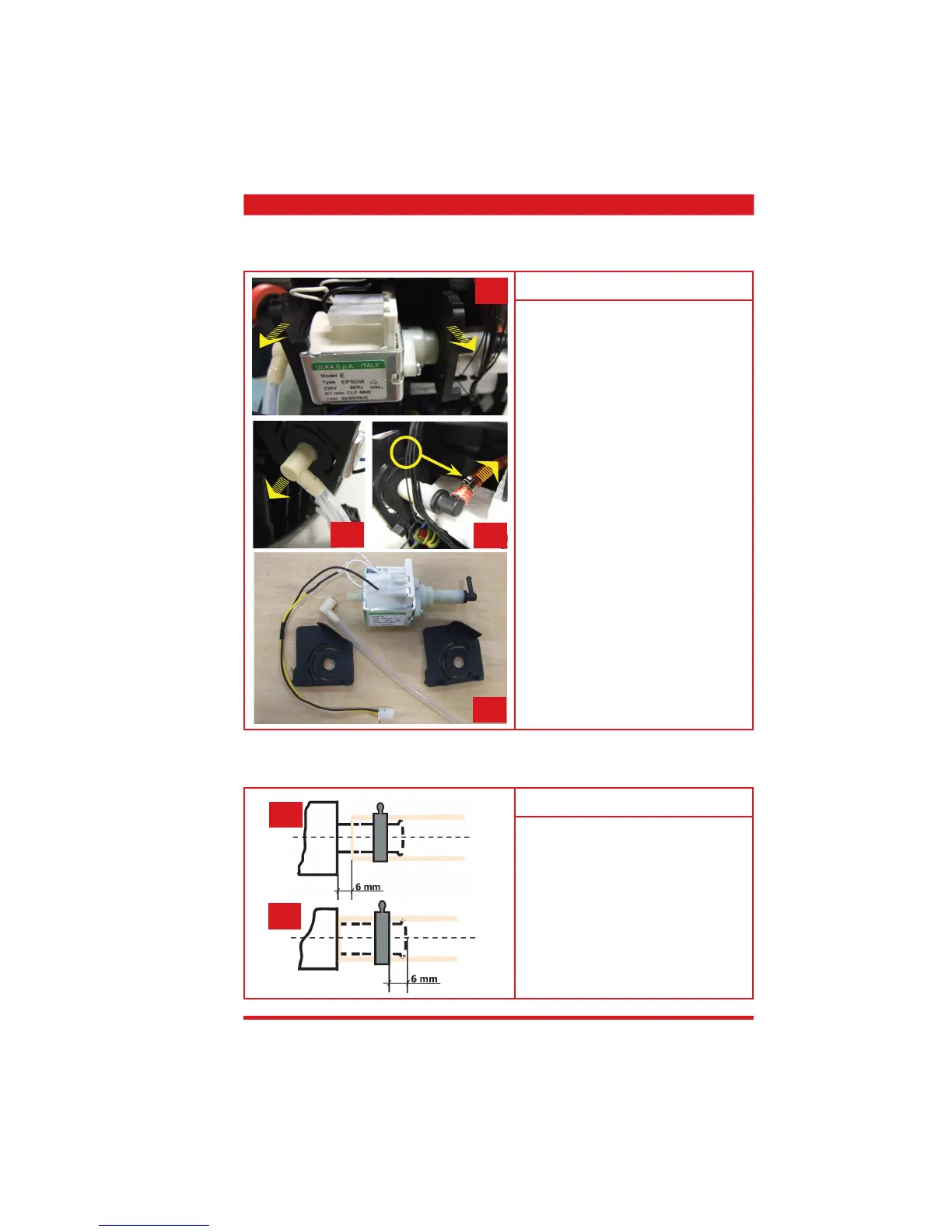

TALEA / ODEA - LINE 07 DISASSEMBLY
Hose connection specifi cations
To disassemble the pump
7.8. Pump
1
Fig. 1
• Remove the pump and the pump
bracket from the guide.
Fig. 2
• Remove the connecting bracket.
Fig. 4
1. Disassembled pump unit.
2
1
3
Fig. 3
• Loosen the hose clamp and remove
the hose.
4
Fig. 1
• Boiler connection.
Fig. 2
• Other connections.
7.9. Hose connections (assembly)
1
2
