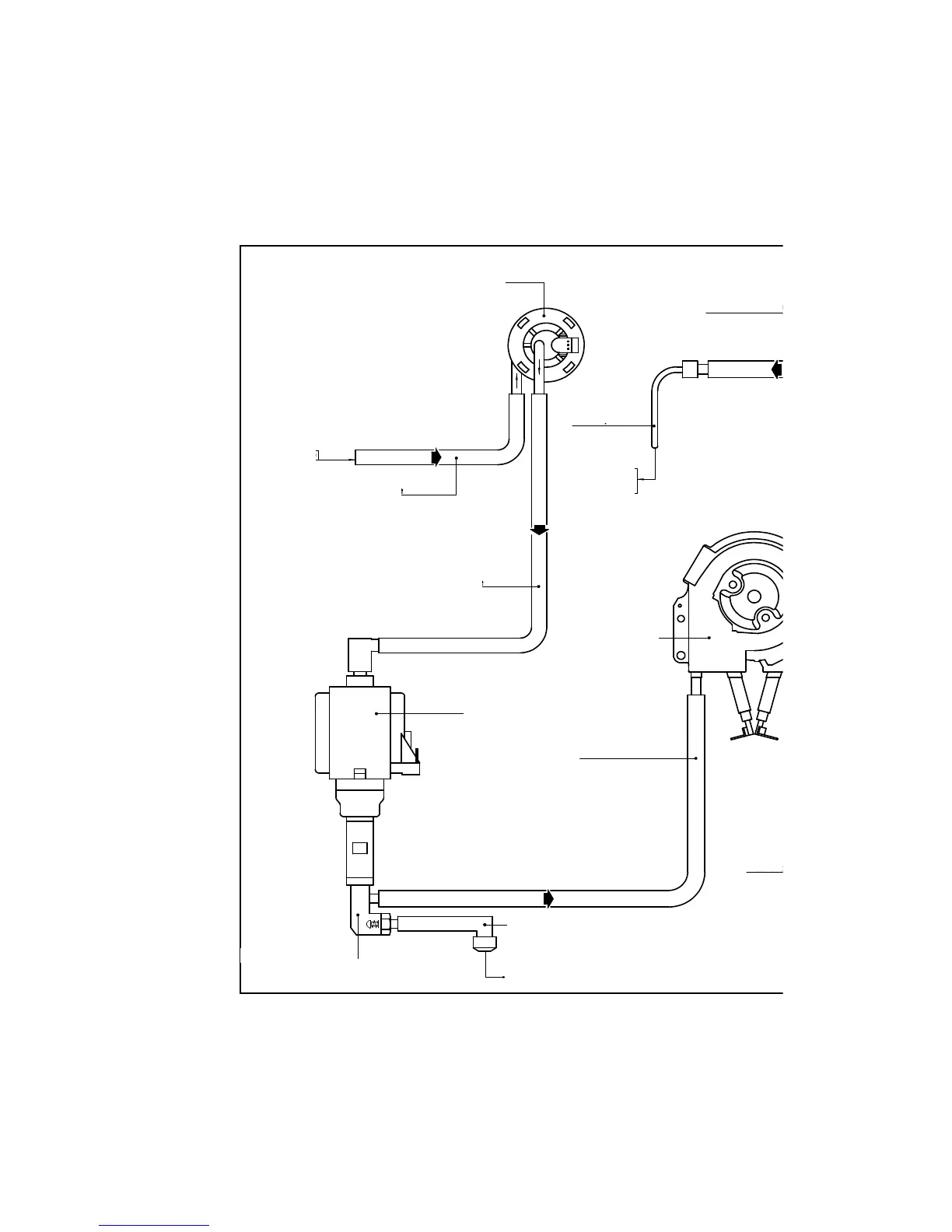

Odea Go
Water
draining
Safety valve 18 - 20
Lined-faced silicone tube
Lined-faced silicone tube
Lined-faced silicone tube
Steam
Steam/water
dispensing
Flow meter
Water tank
Silicone tube
Silicone tube
Boiler 1300 W
Pump
Pipe fi tting of
water drain
