TALEA / ODEA - LINE 05 SERVICE MODALITY
5.3.1 Test mode - Talea Touch
Function group t.1 - Brewing unit
Function group t.0 - software version
t.0
software version
next
CPU_V01.04.09
*
* *
4
2
3
1

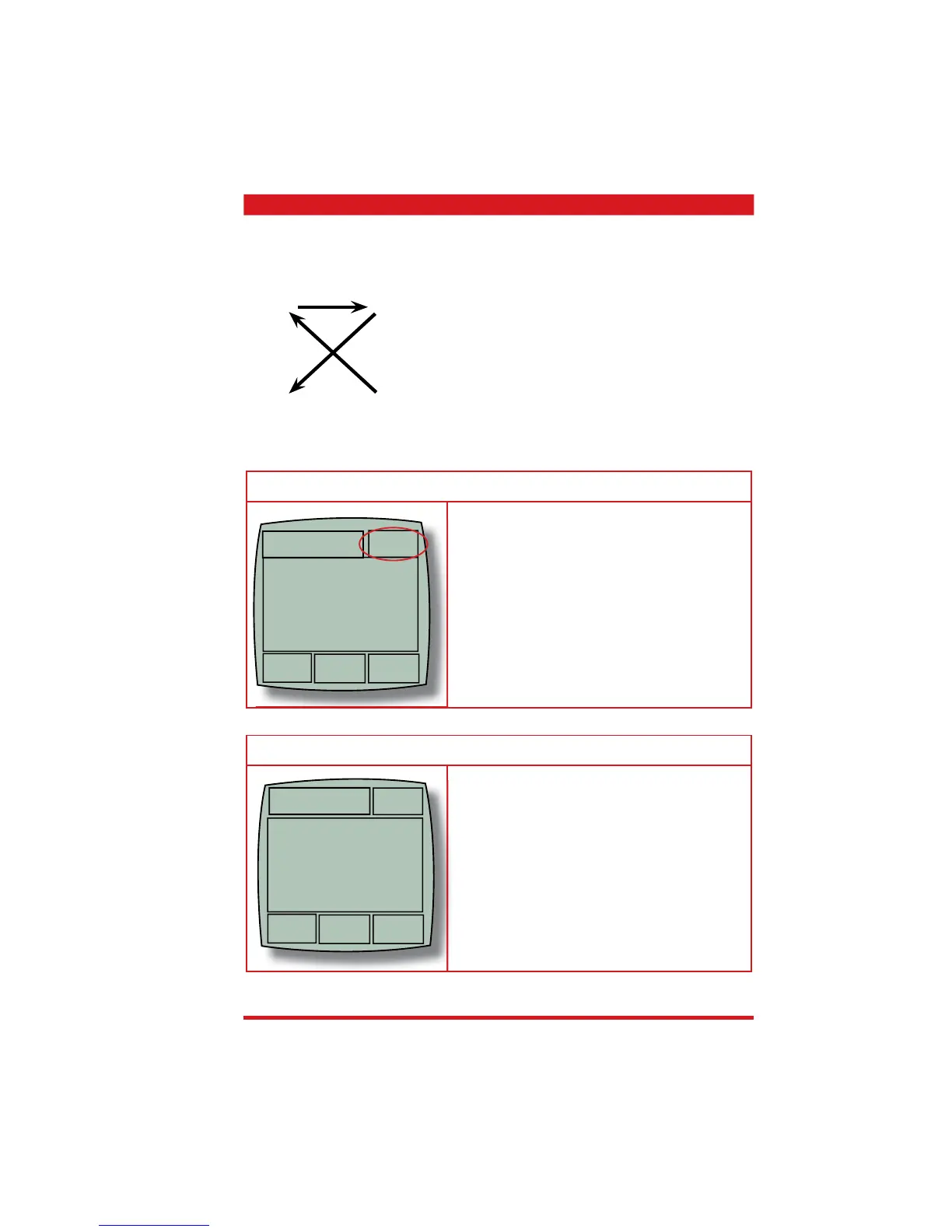

Getting started with test mode:
• Turn on the appliance (wait for hourglass to appear).
• Within 3 seconds, type in an X in the corner of the display
in the sequence shown (beginning at the bottom right).
Navigation:
• Use the "next" key to move through the menu levels.
• You can use the three keys on the lower edge of the dis-
play to start up to three functions for each menu level.
t.1 - Brewing unit
next
bu_current (mA) = 3
bu_home = OFF
bu_work = ON
bu_present = ON
bu_dregdrawer = ON
bu_door = ON
bu go
home
bu go
work
bu
stop
Displays the current CPU software version.
bu_current (mA)
bu_home:
bu_work
bu_present:
bu_dregdrawer:
bu_door:
bu go home:
bu go work:
bu stop:
Power consumption in mA
ON - Microswitch (original position)
Gearing mechanism activated
ON - Microswitch (brew position)
Gearing mechanism activated
ON - Microswitch brewing unit
(inserted) activated
ON - Dreg drawer reed switch
ON - Reed switch for doors
Brewing unit moves to original posi-
tion
Brewing unit moves to brewing
position
Stop brewing unit
