Saeco TALEA - Boiler; 07 Disassembly

Saeco International Group Page 5 / 13
TALEA / ODEA - LINE 07 DISASSEMBLY

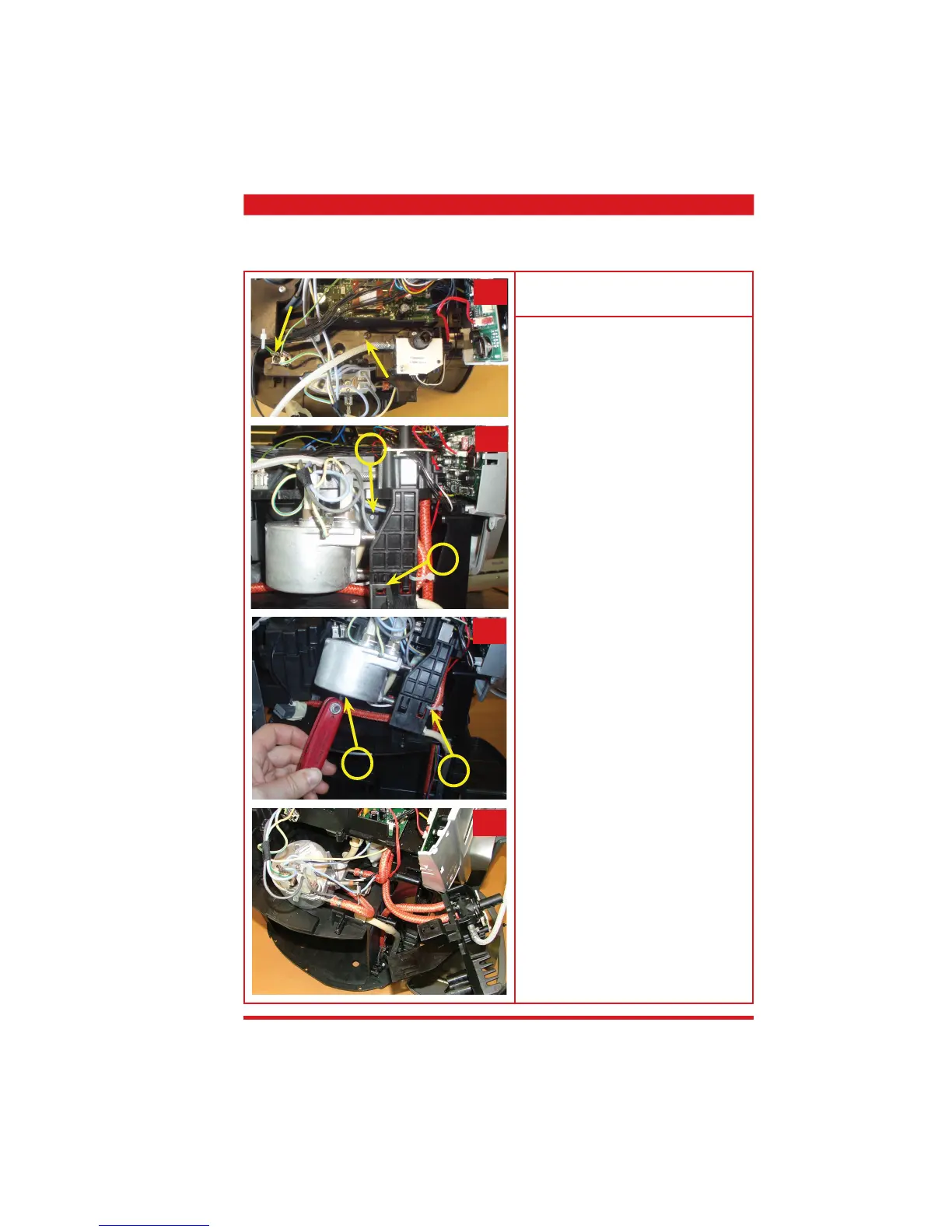

To disassemble the boiler
7.6. Boiler
1
2
Fig. 1
• Remove the screws shown.
Fig. 2
1. Remove the screw shown.
2. Release the hook and fold the unit
upwards.
Fig. 3
1. Loosen the cable tie.
2. Loosen the boiler from the bracket
(Allen key).
Fig. 4
• Loosen the connections.
• Replace the boiler.
4
3
2
2
1
1
