Saeco TALEA - SBS; Dispenser; Housing

Saeco International Group Page 1 / 13

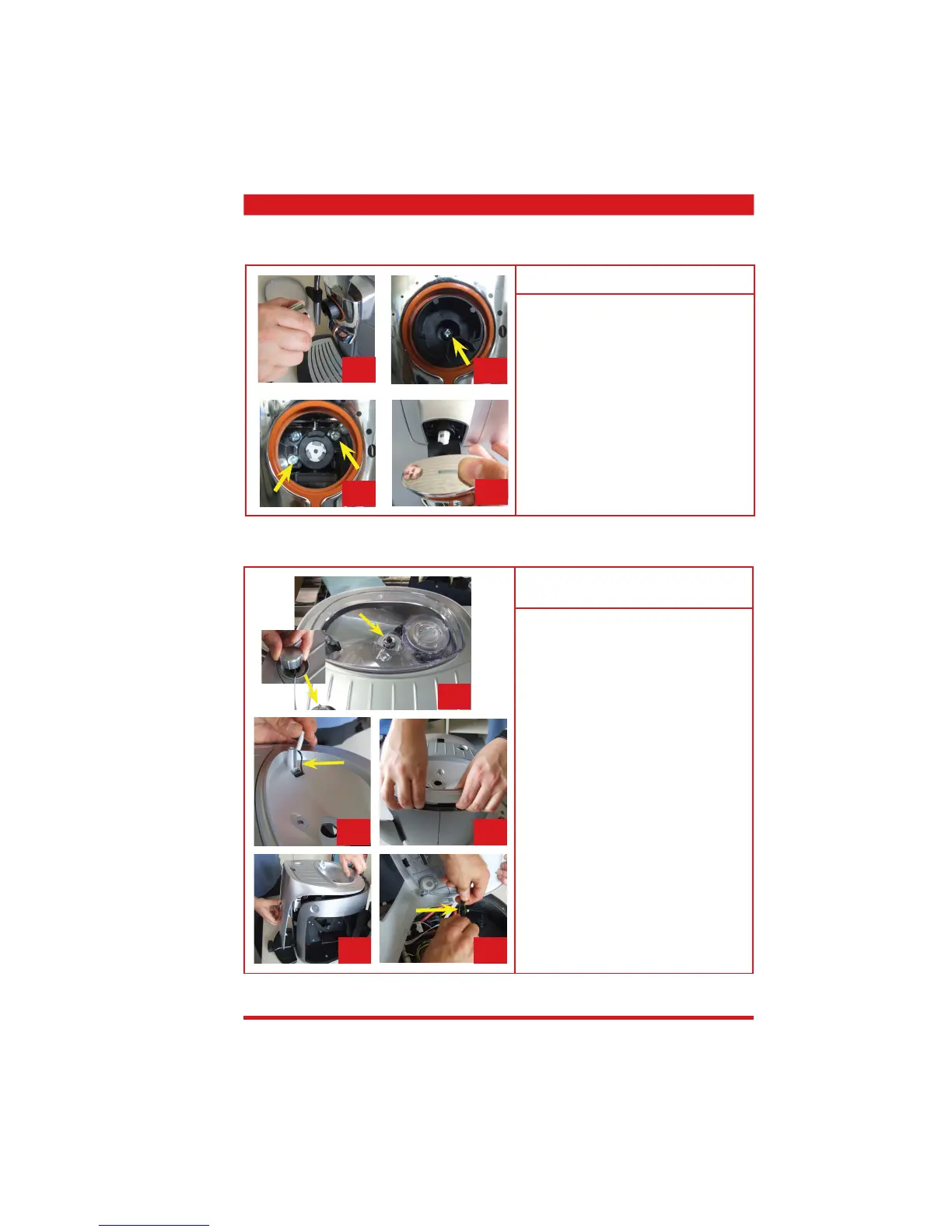

TALEA / ODEA - LINE 07 DISASSEMBLY
To disassemble the SBS
7.2. Housing
7.1. SBS / dispenser
Fig.1
• Remove the SBS rotary knob.
Fig.2
• Unscrew the fi xing screw.
• Remove the bracket of the SBS rotary
knob.
Fig.3
• Unscrew the screws shown.
Fig.4
• Remove the drain valve.
1
2
3
4
To disassemble the housing - front
and upper parts
Fig. 2
• Take out the bean hopper cover sensor.
Fig.1
• Remove the cover of the coffee con-
tainer.
• Unscrew the screw marked in the il-
lustration.
• Remove the rotary knob from the hot
water / steam valve.
Fig. 4
• Fix the upper housing around the bean
hopper.
• Pull the front side under the drain valve
forwards.
• Remove the upper part of the housing.
Fig. 5
• Unplug the cup warmer and grounding.
Fig. 3
• Loosen the rear upper part of the
housing.
1
2 3
4 5
Caution: if you need to remove the upper part of the housing, start by moving the cup lift to its
lowest position then remove the collection tray.
