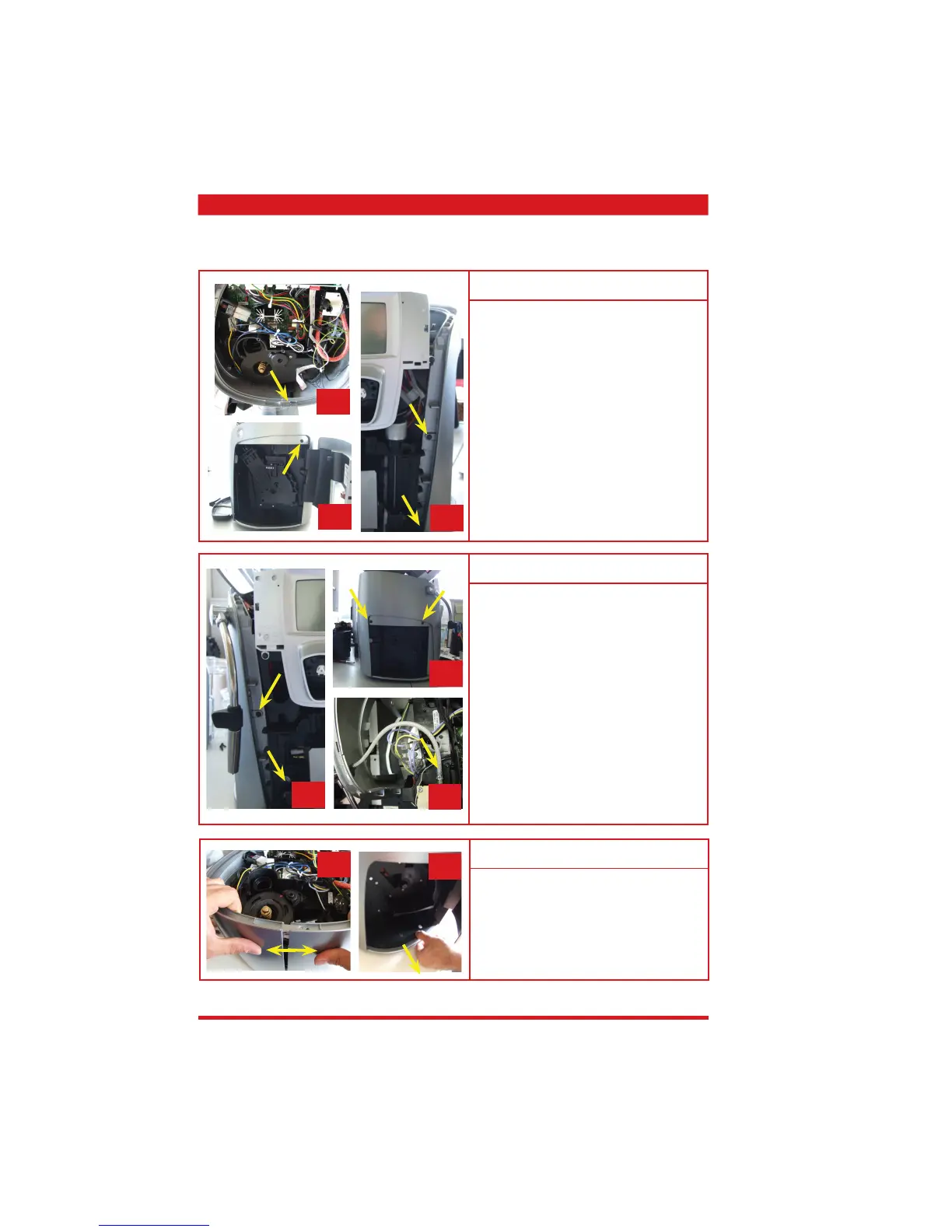

07 DISASSEMBLY TALEA / ODEA - LINE
To remove the side panels
To disassemble the right side part
1
2
3
Fig. 1
• Remove the screw shown.
Fig. 2
• Remove the screw shown (not with
Odea).
Fig. 3
• Remove the screws shown.
Fig. 1
• Separate the rear upper side part.
Fig. 2
• Grab the side part from underneath
and remove.
1
2
To disassemble the left side part
Fig. 1
• Remove the screws shown.
1
2
3
Fig. 2
• Remove the screws shown.
Fig. 3
• If required, loosen the hose clamp
on the hot water / steam valve and
remove the hose.
