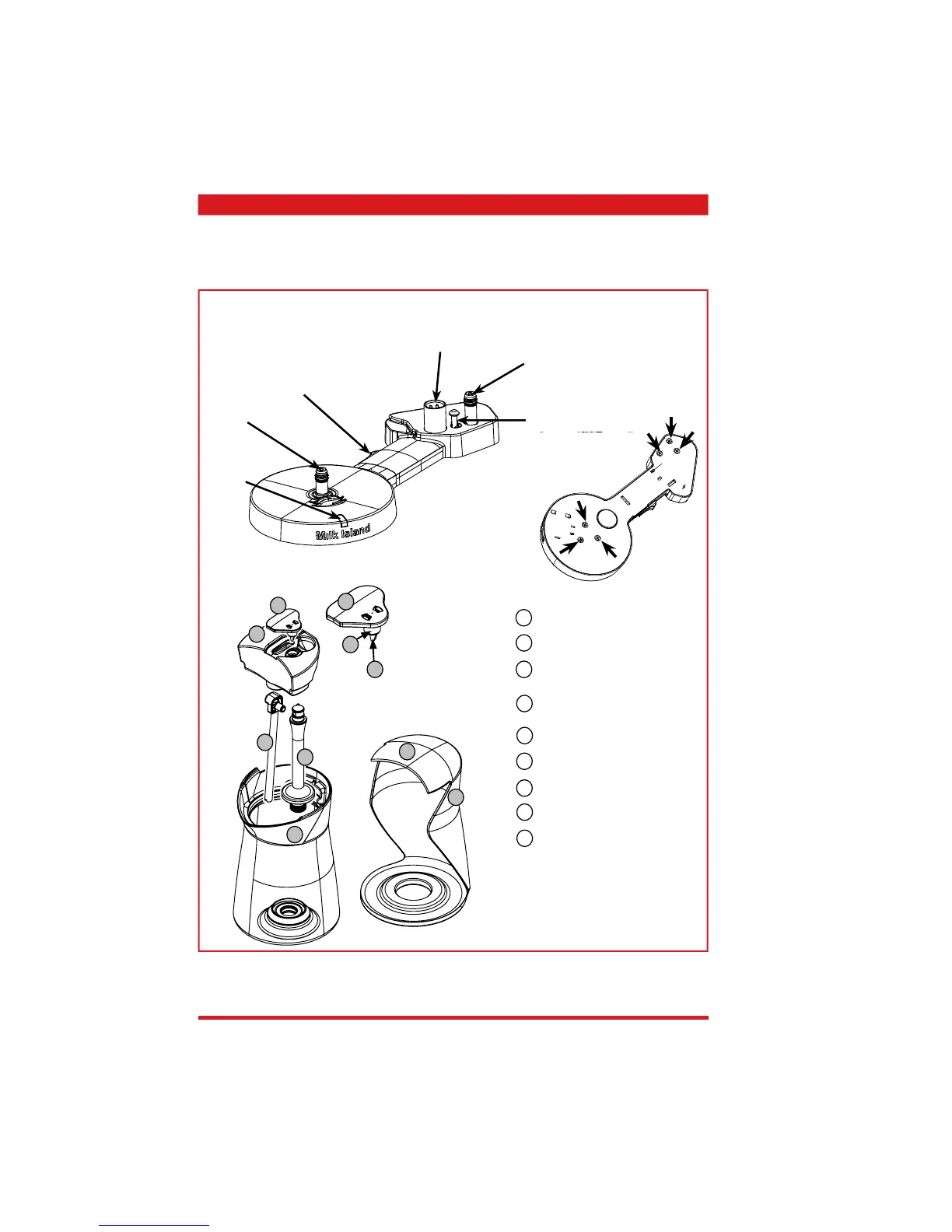

04 FUNCTIONAL PRINCIPLES TALEA / ODEA - LINE
Electrical
connection to the
machine
Hydraulic connection
on the appliance for the
incoming steam supply
Pushbutton for connecting
and disconnecting the Milk
Island to/from the machine
Escaping steam
LED to show ca-
rafe is installed
Clamp for fi xing the
Milk Island to the
machine
To dismantle,
unscrew the screws
marked in the il-
lustration
Cappucinatore cover
Cappucinatore valve cover
Vernay valve
Insertion for the Cappucinatore
valve cover
Cappucinatore
Carafe handle
Carafe milk suction tube
Carafe steam dispenser hose
Upper part of the carafe
2
1
3
4
5
6
7
8
9
Caution: if the base station of the Milk Island is removed from the coffee machine, it is absolutely
necessary to apply the lock on the bottom of the machine!
