Access control presentation MORPHOACCESS® J SERIES – User Guide

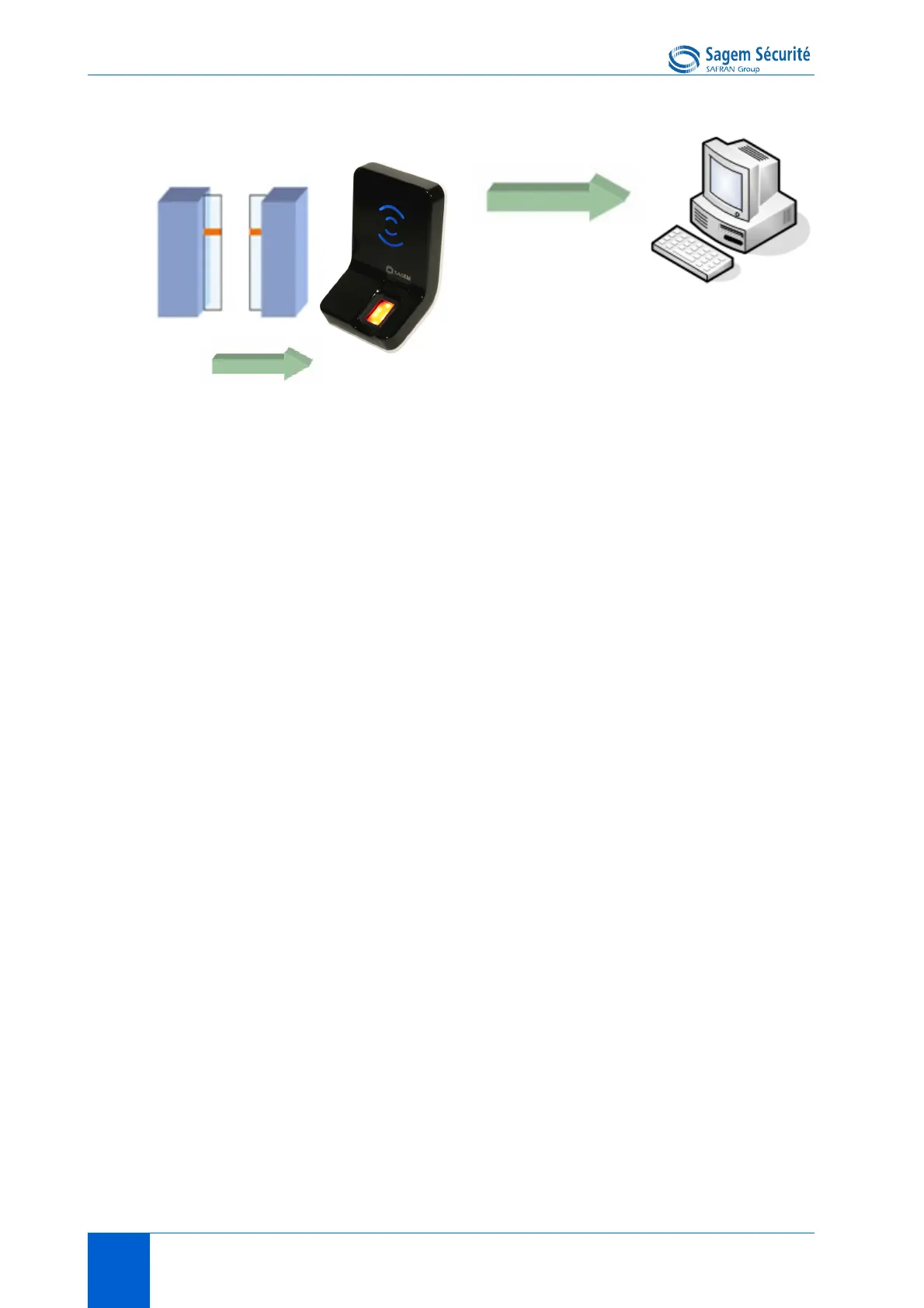

Figure 4 • 6:Access control result
Various messages or interfaces can be activated to send the control result:
Relay
After a successfull biometric control the MorphoAccess
®
relay may be
activated during a specified period (for example, to unlock a door).
Wiegand User Id Emission
The User ID of the recognized user can be sent through the Wiegand output.
The format of the frame may be user defined.
The message format includes only the user identifier (which must be a numeric
value). By default, the message is sent only when the access control result is
positive, but as an option this message can be sent when the result is negative,
with an error code instead of the user identifier.
Dataclock User Id Emission
The ID of the recognized user can be sent through the Dataclock output.
Control result:
•RS485
• Wiegand
• Dataclock
• Ethernet or Wi-Fi
TM
(UDP/TCP/SSL)
Internal relay
Central
Access Controller
