Sagem Securite MorphoAccess J-Bio - Figure 8 • 1: Internal Relay Activated by LED in

DOCUMENT SSE-0000077399-01 - VERSION 1.0 - MAY 2010 65
S
AGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED
MORPHOACCESS® J SERIES – User Guide Relay activation
TERMINAL CUSTOMIZATIONTERMINAL CUSTOMIZATIONTERMINAL CUSTOMIZATIONTERMINAL CUSTOMIZATIONTERMINAL CUSTOMIZATIONTERMINAL CUSTOMIZATION

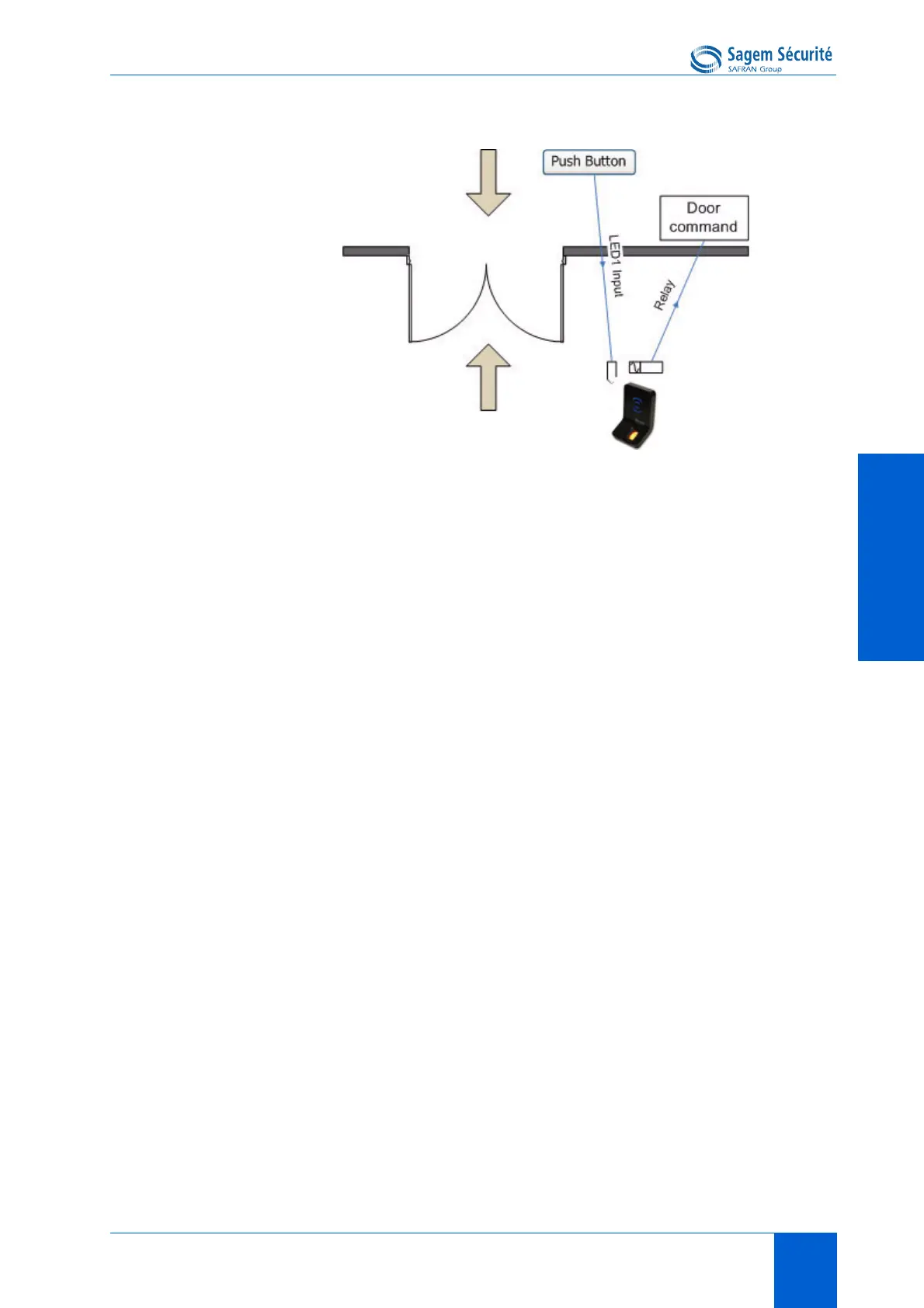

Figure 8 • 1: Internal relay activated by LED IN
Typically the MorphoAccess
®
relay controls the door.
• To enter in the building the user must be successfully recognized by the
MorphoAccess
®
.
• A simple push-button connected to LED1 on the MorphoAccess
®
will
trigger the door to leave the building.
OUT
IN
