H2 series
11

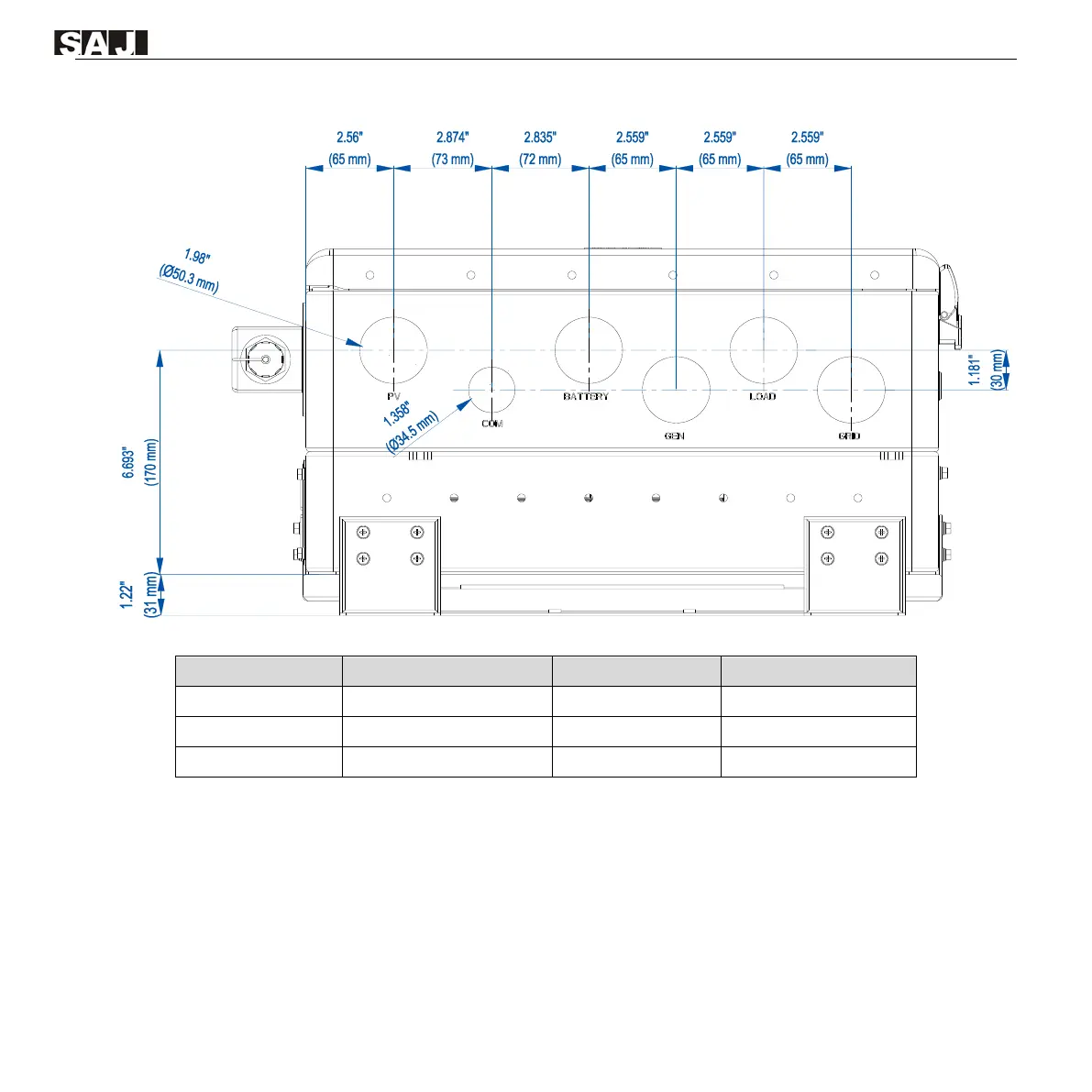

Figure 2.3. Dimension of knockout holes
Knockout hole
Dimension
Knockout hole
Dimension
PV
φ50.3 mm (φ1.98")
COM
φ34.5mm (φ1.358")
BATTERY
φ50.3 mm (φ1.98")
GEN
φ50.3 mm (φ1.98")
LOAD
φ50.3 mm (φ1.98")
GRID
φ50.3 mm (φ1.98")
Table 2.2. Dimension of knockout holes
