H2 series
36
5.3. Open the junction box of the inverter
Step 1. Use the provided key to open the two locks on the right side of the inverter. Then, lift the cover
leftwards.

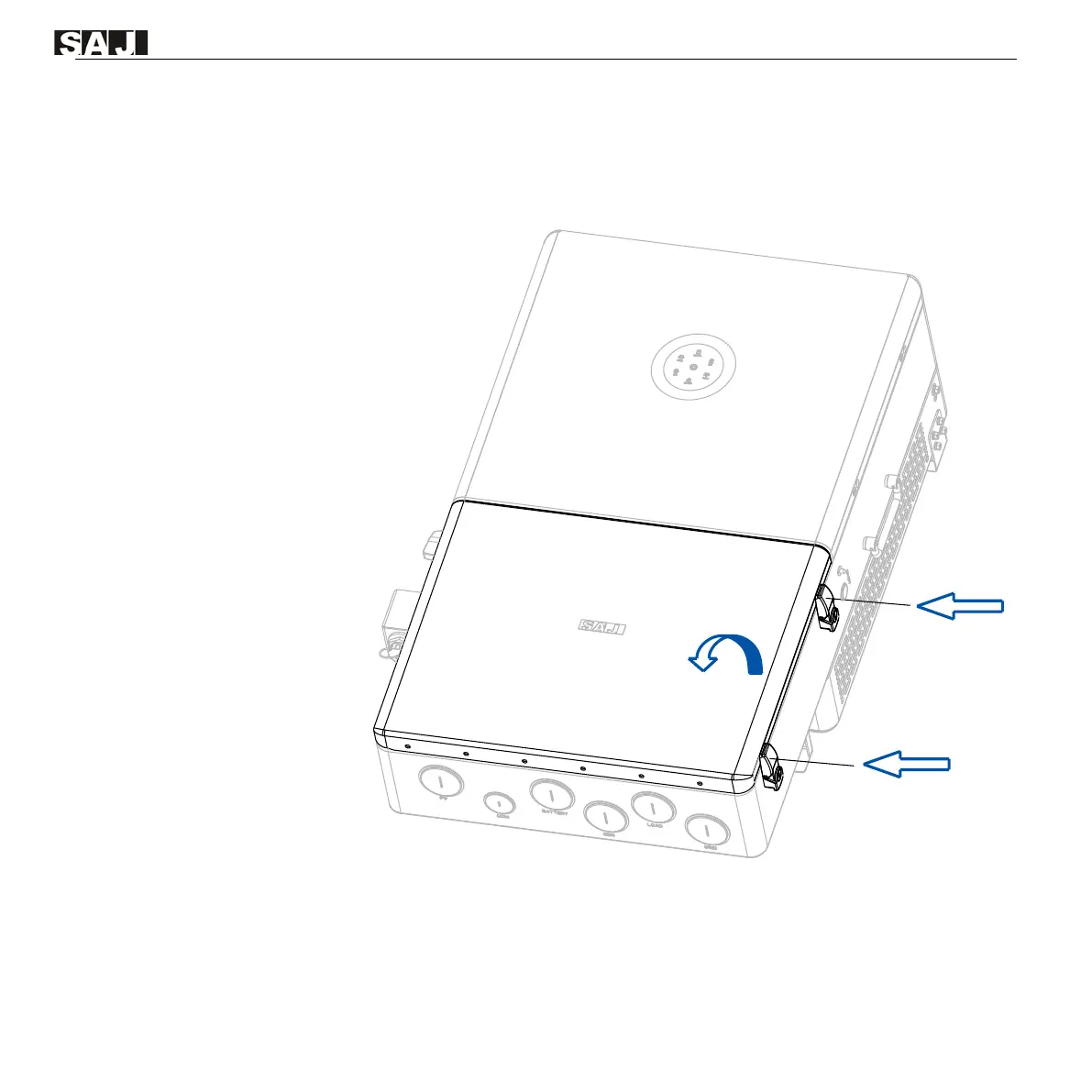

Figure 5.3. Opening the junction box
