SAJ H2 - Install the Battery

H2 series
31
Step 3. Mount the inverter onto the mounting plate. Insert two M6*50 screws (1.2-1.5 N·m) on each
bottom side of the inverter to secure it to the wall.
M6*50
1.2-1.5 N·m

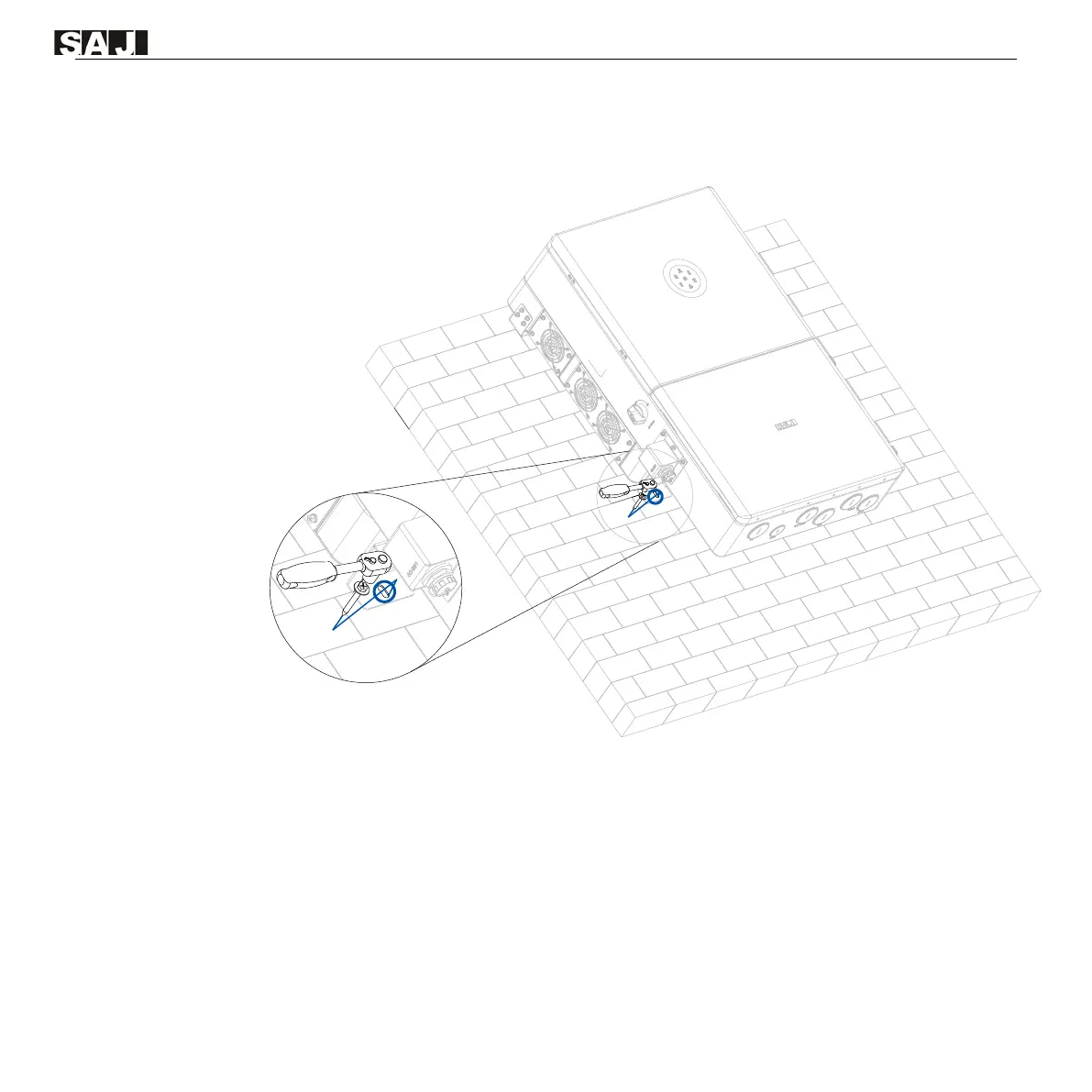

Figure 4.9. Securing the bottom locking brackets
Step 4. If required, install metal conduits to the knockout holes at the bottom of the inverter.
4.7. Install the battery
For details, refer to the battery user manual.
