SAJ H2 - Connect the Communication Cable

H2 series
48
5.7.2. Connect the communication cable
Connect one end of the network cable to the communication port on the BMS.
Insert the other end of the network cable through the BATTERY knockout hole of the inverter and
connect it to the BMS_CAN port.

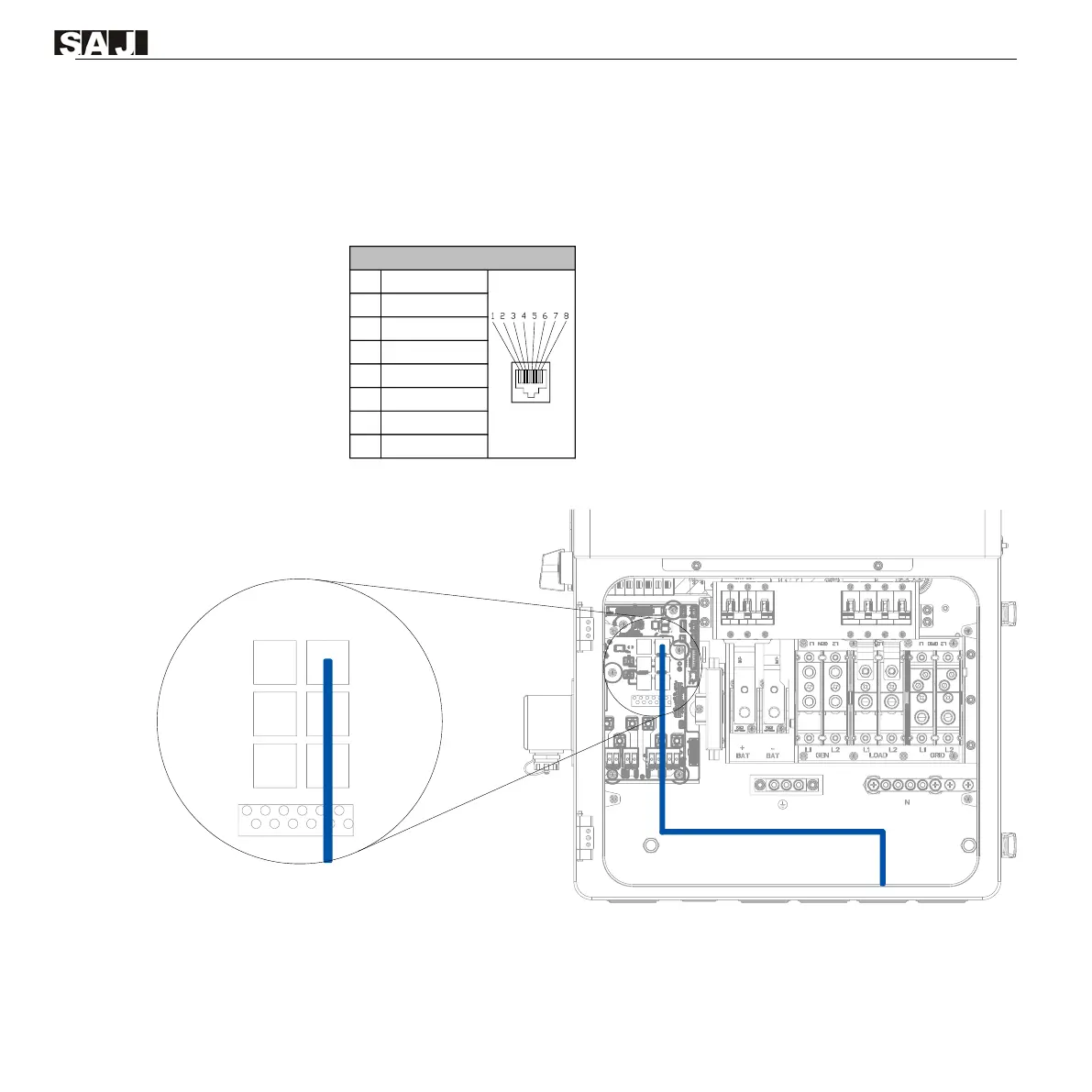

Figure 5.18. Pin definitions of the BMS_CAN port
1 3 5 7 9 11
2 4 6 8 1012
1 3 5 7 9 11
2 4 6 8 1012
Figure 5.19. Connect the cable to the BMS_CAN port
1 NC
2 NC
3 NC
4 CANH
5 CANL
6 NC
7 NC
8 NC
BMS_CAN
