Step 2. Insert the cables through the BATTERY knockout hole and connect them to the battery terminals
in the junction box.
BATTERY

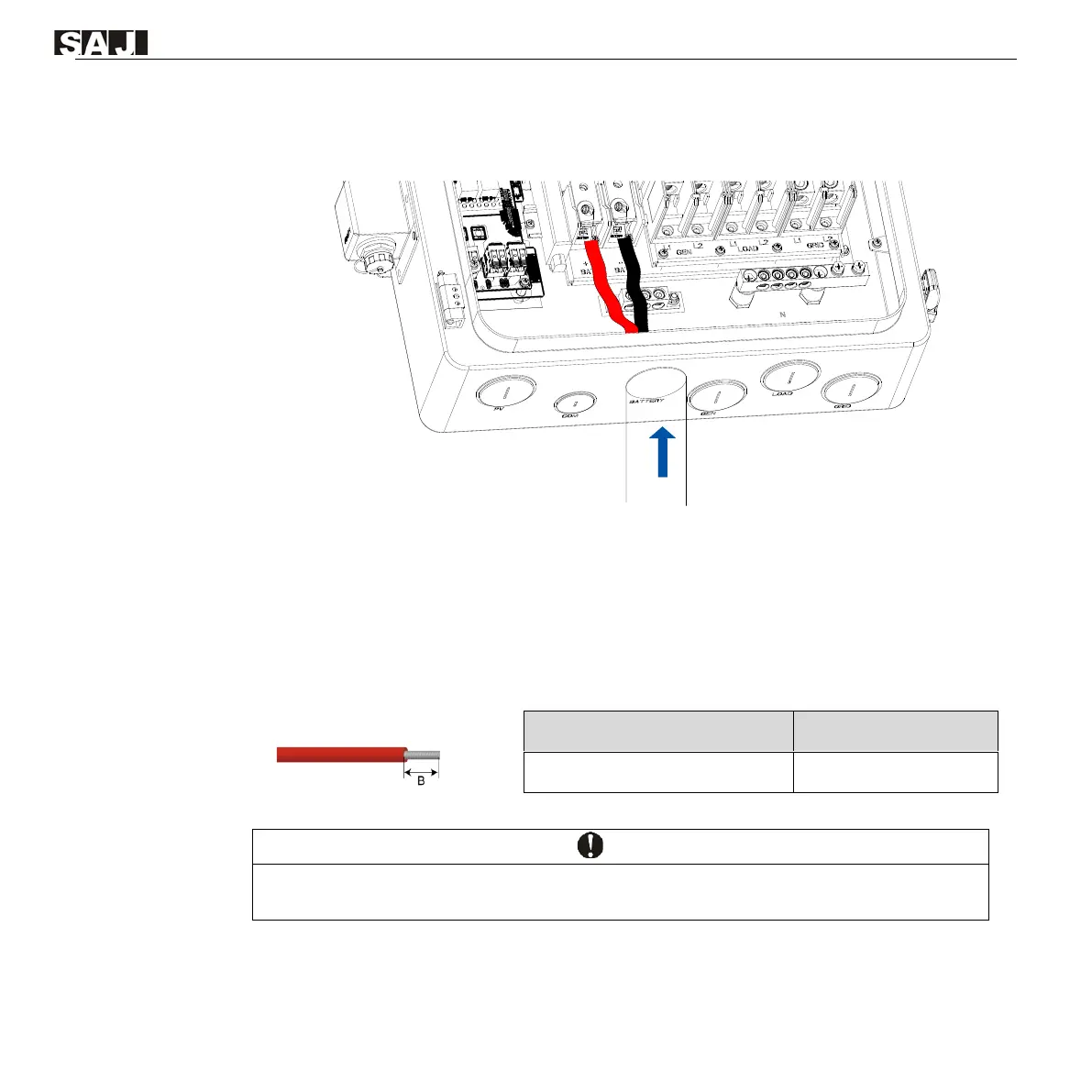

Figure 5.12. Connecting the battery cables
5.6. Assemble the PV-side electrical connection
Step 1. Strip off the insulation (20-mm/0.79-inch length) of the cable ends. User cable ferrules if the cable
is of multi-strand type.
Cable
Recommended cable
PV+, PV-
12 AWG
NOTICE
⚫ Connect the positive connector to the positive side of the solar panels and connect the negative connector
to the negative side of the solar side. Be sure to connect them in the right position.
