H2 series
44

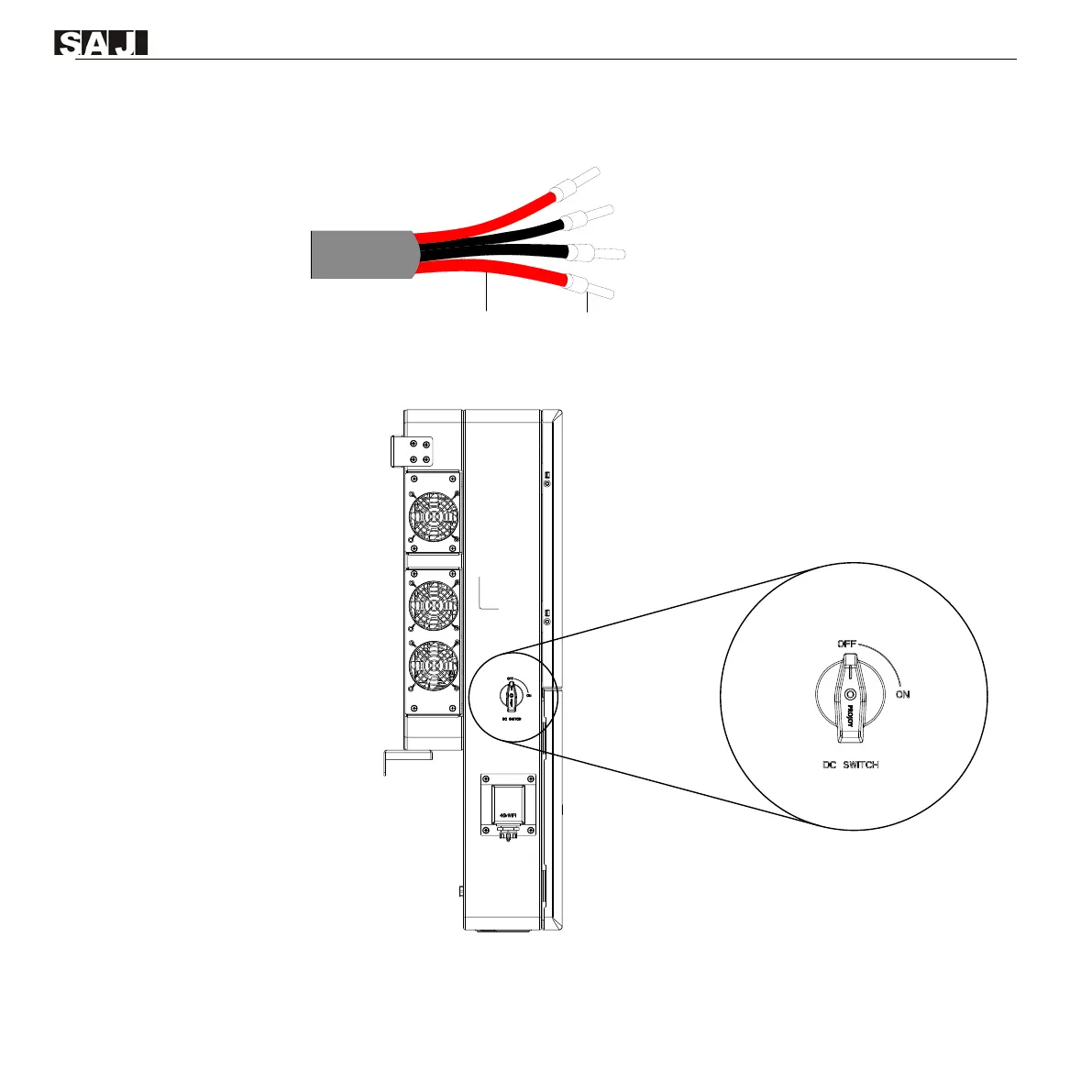

If needed, you can install a terminal on the cable end, as shown below:
Cable Terminal
Figure 5.13. Putting terminals on the cable ends
Step 2. Ensure that the DC switch on the left side of the inverter is in OFF position.
Figure 5.14. DC switch in OFF position
