H2 series
45
Step 3. Insert the PV cables through the PV knockout hole and connect them to the PV terminals in the
junction box.
PV

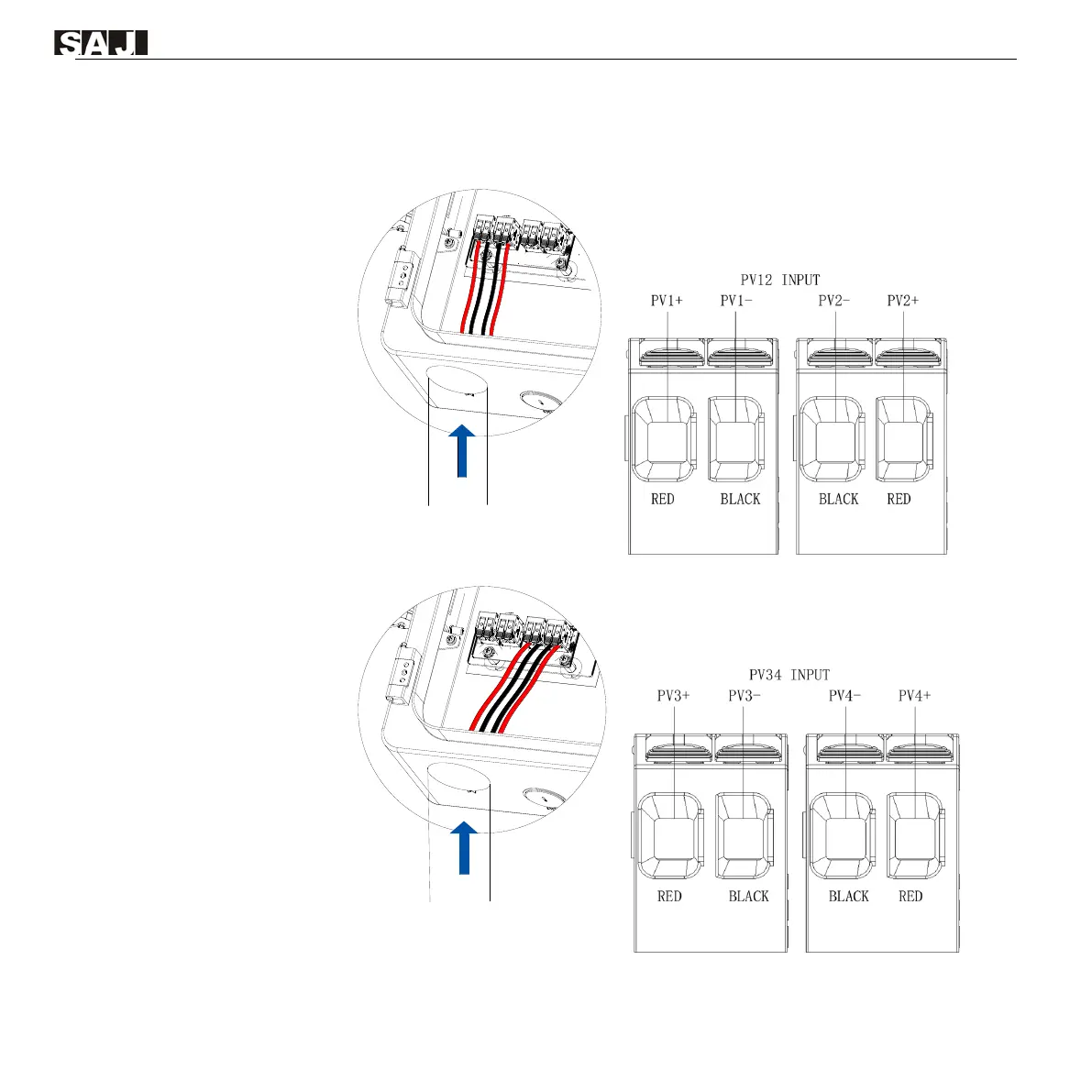

Figure 5.15. Connecting the cables to PV1 and PV2
PV
Figure 5.16. Connecting the cables to PV3 and PV4
