2.5. Electrical terminals in the junction box
1 32 4 5 6 7

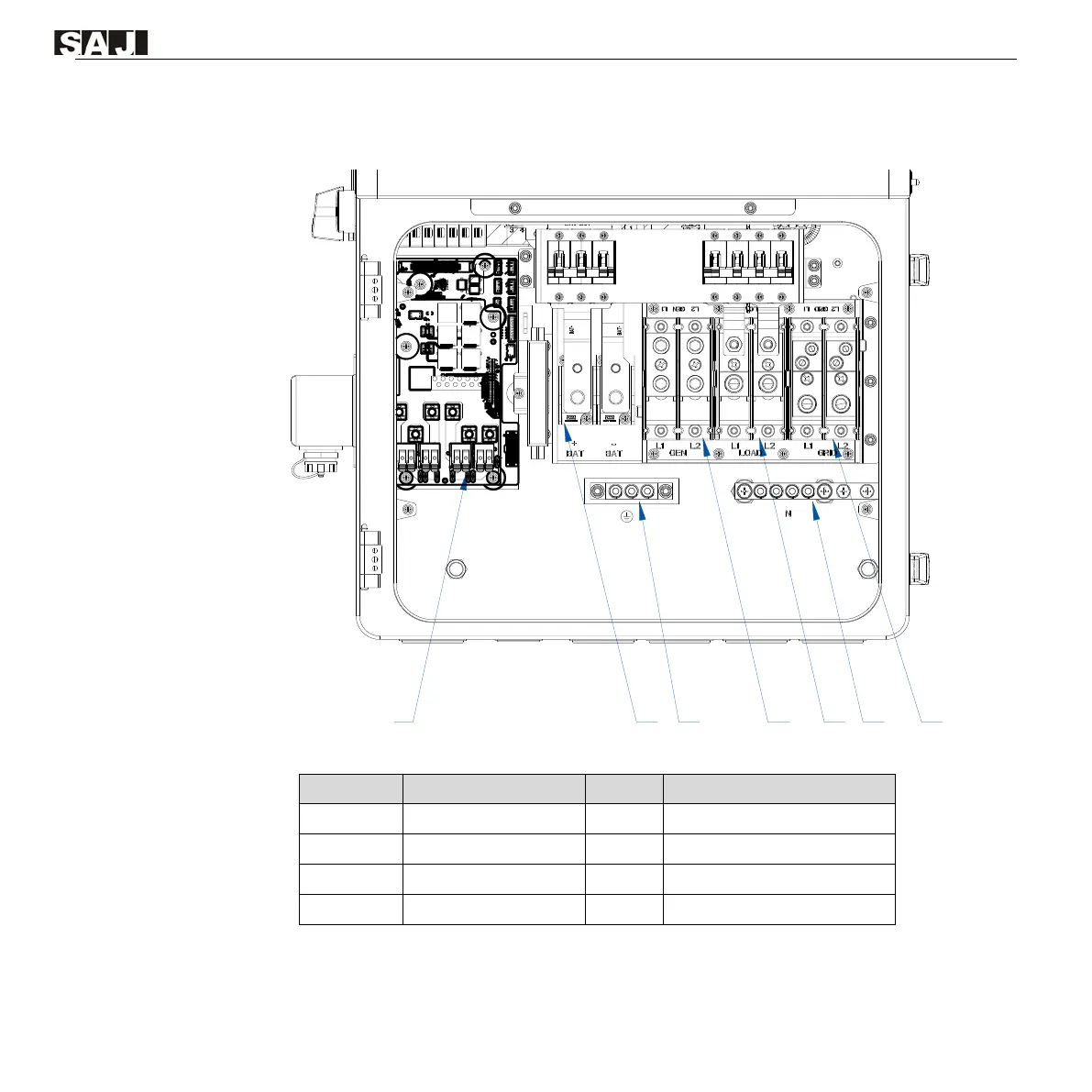

Figure 2.4. Electrical terminals in the junction box
Callout
Description
Callout
Description
1
PV1–PV4
2
BAT (BAT+ and BAT-)
3
PE
4
GEN
5
LOAD (L1 and L2)
6
N
7
GRID (L1 and L2)
/
/
Table 2.3. Description of electrical terminals
