5.5. Connect the battery to the Inverter
About this task
For battery details, refer to battery product documentation.
CAUTION: Do NOT connect the positive port to the negative port on one battery. This will short-circuit
this battery, causing serious battery damage.
Procedure

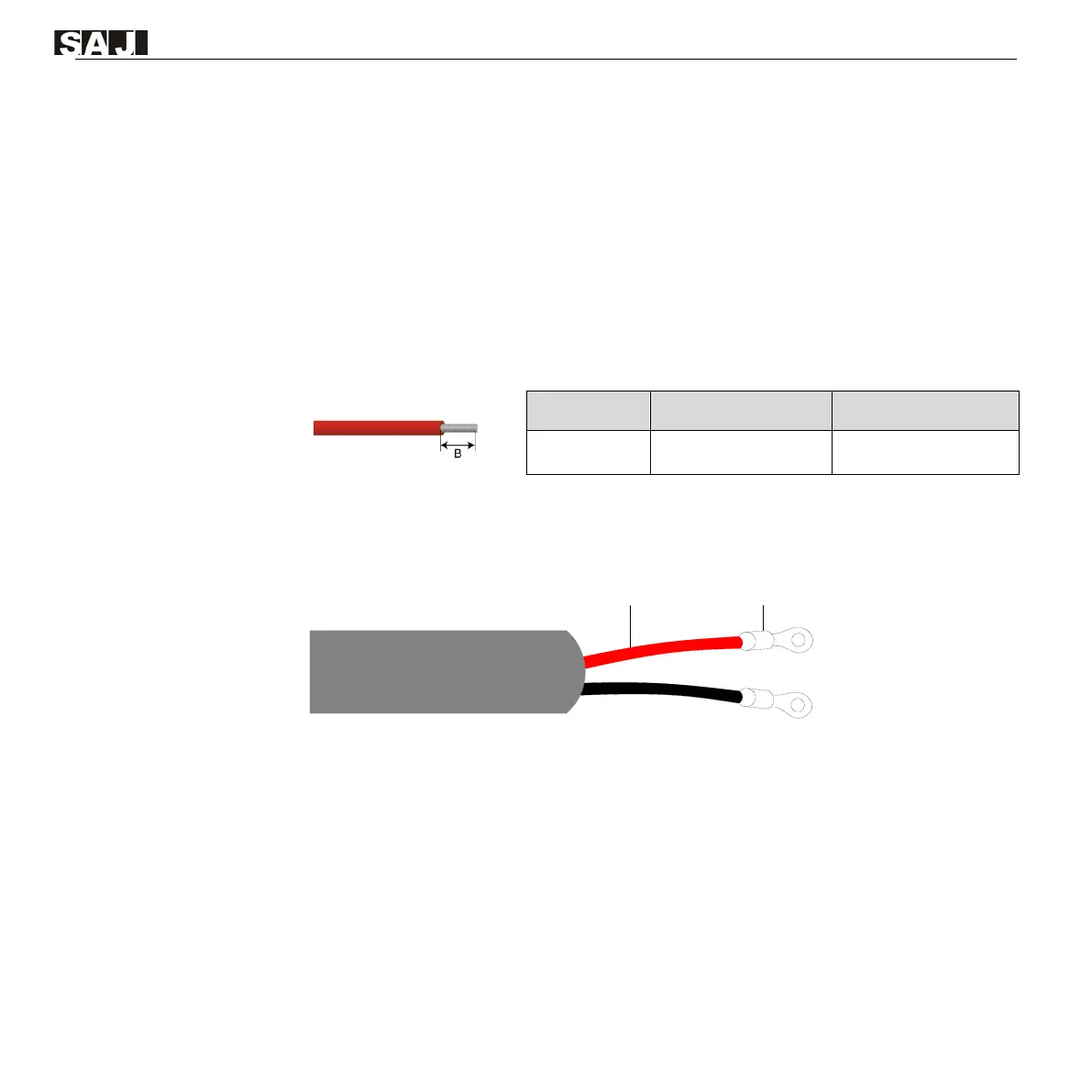

Step 1. Strip off the insulation (20-mm/0.79-inch length) on the cable ends.
Cable
Recommended cable
Recommended torque
BAT+, BAT-
2/0 AWG
80 LB-IN (9. N·m)
Install an M10 bronze terminal on the cable end, as shown below:
Terminal
Cable
Figure 5.11. Putting terminals on the cable ends
