5.8. Connect the CTs
Connect the CT wires to pin 1, 2, 3, and 4 on the CN89 terminal in the junction box of the inverter.
From the CT
To the CN89 terminal pins in the inverter
CT GRID-L1
Blue wire
1
White wire
2
CT GRID-L2
Red wire
3
Black wire
4
1 3 5 7 9 11
2 4 6 8 1012
1 3 5 7 9 11
2 4 6 8 1012

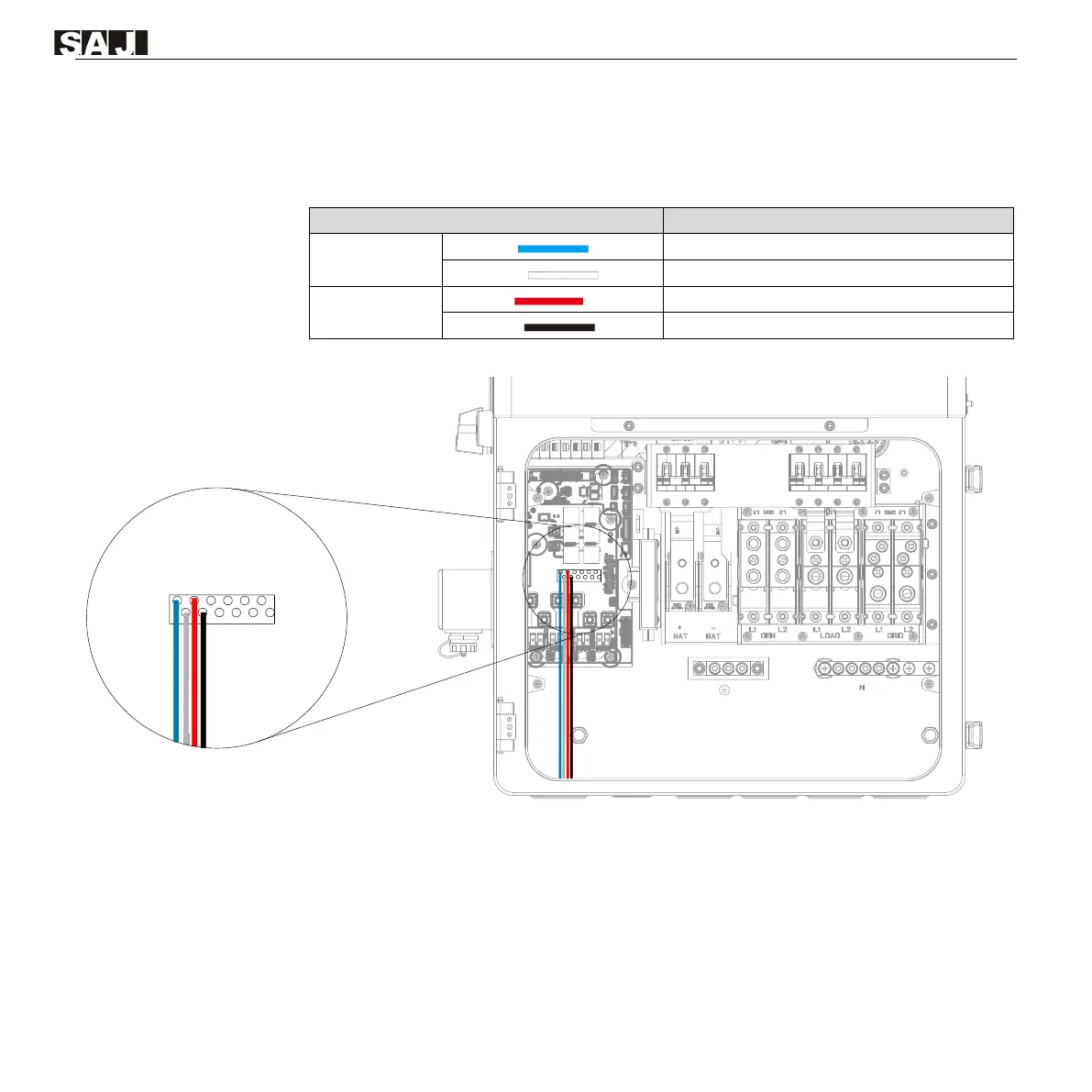

Figure 5.20. CT connection
