The following installation examples should be avoided. Any damage caused will not be covered by the
warranty policy.
PV array
Single PV string can not be connected to multiple inverters.
Backup
Generator
Backup
On-Grid
LOAD terminals can not be connected to any AC generator.
LOAD terminals can not be connected to grid.

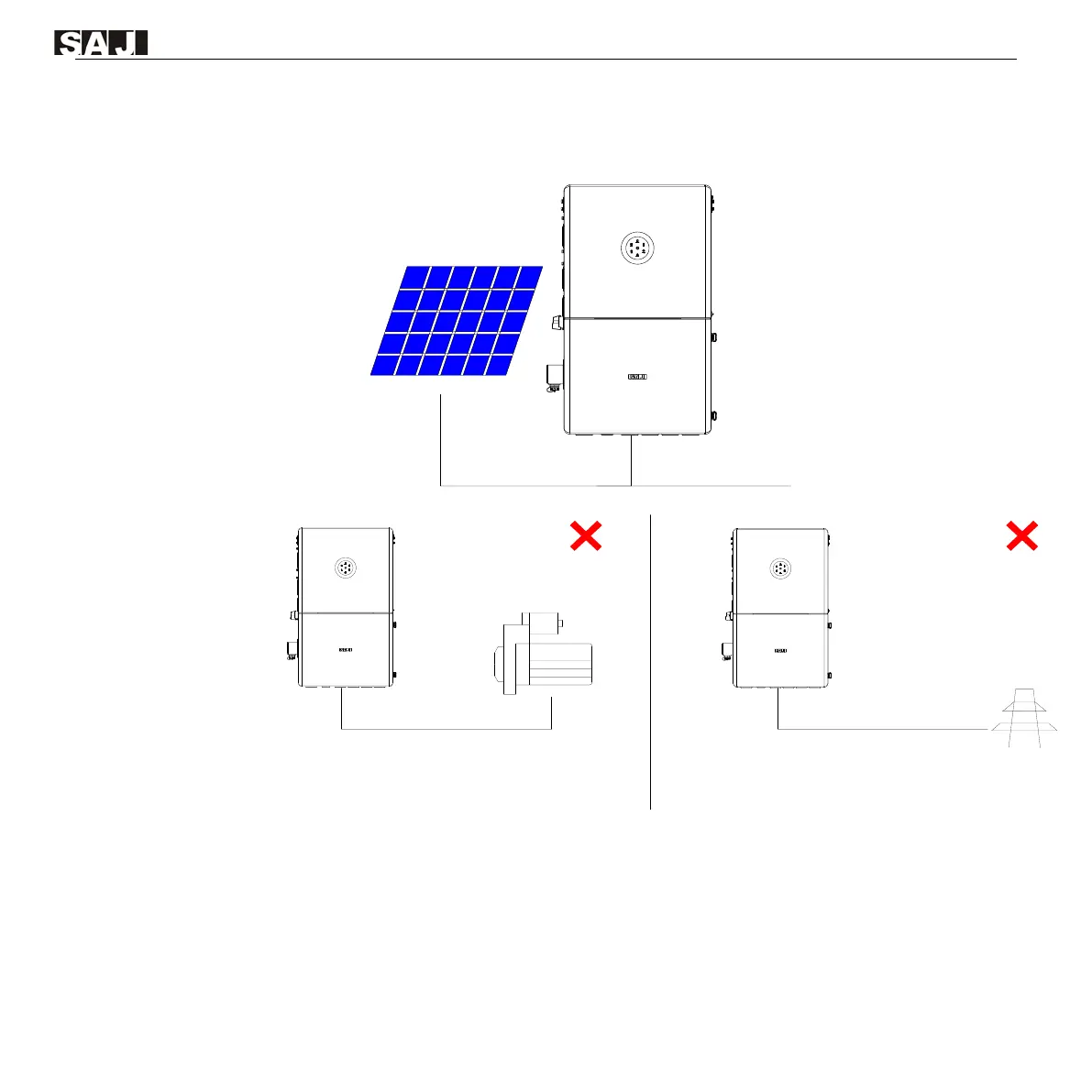

Figure 4.2. Incorrect system topology diagrams
