VM1000 Series

‐14‐


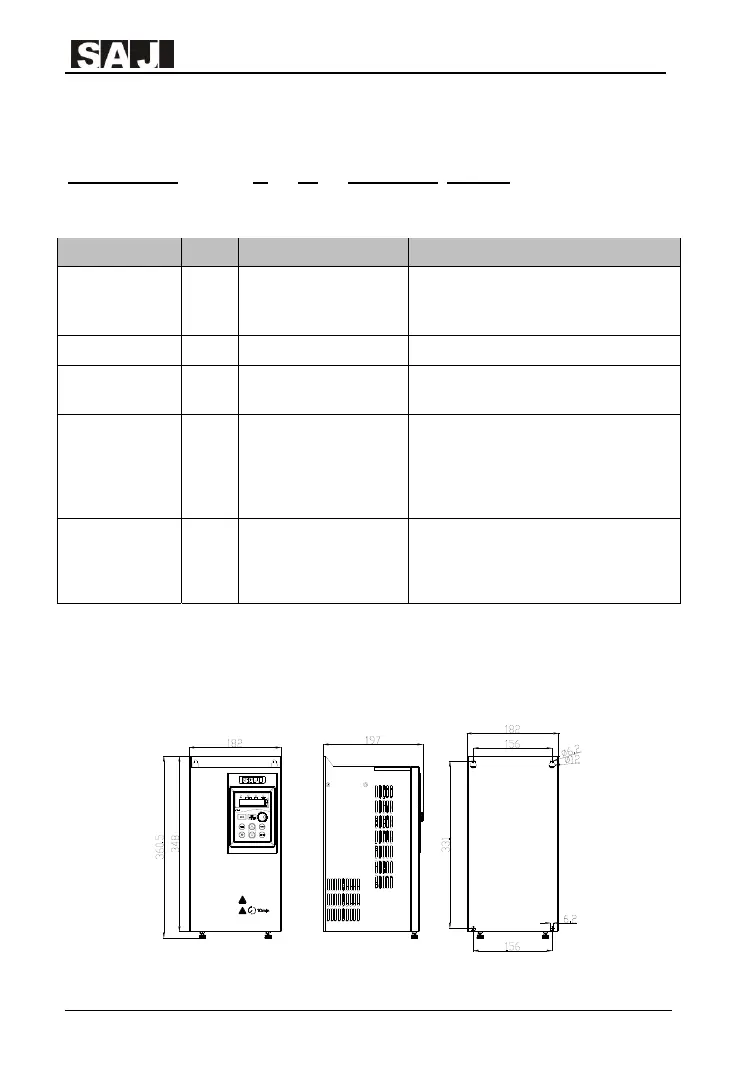

1.4 Model Description
VM1000 – 4 T 18R5G/022P
① ② ③ ④ ⑤

Field Sign Sign Instruction Specification
Product
abbreviation
① Product abbreviation
VM1000 ： General vector control
variable frequency drive, “Vector
Master” series
Voltage class ② Voltage class 2：220VAC； 4：380VAC
input power
phase
③ Sign of power phase S：single-phase ；T：three-phase
Rated power 1 ④ Power of G load type
18R5-18.5kW，R represents decimal
point
G—constant torque load
B—built-in braking unit
Rated power 2 ⑤ Power of P load type
022-22kW
P—variable torque load
B—built-in braking unit
Table 1-3 VM1000 Field Annotation

1.5 Dimension of AC Drive

Table 1-2 11kW-15kW Installation Dimension
