VM1000 Series



‐17‐



1.6 Dimension of Keyboard

VM1000 operation keyboard is directly plug in the control board socket and is

buttoned on the keyboard tray.There is a keyboard frame for the the front cover.

After installation, the frame is fixed around operation keyboard. Please refer to 2-1.

If keyboard needs to be extended externally, please cut a rectangle hole on the

control panel or the door carbinet for the keyboard installation according to the

following dimension.

RESET



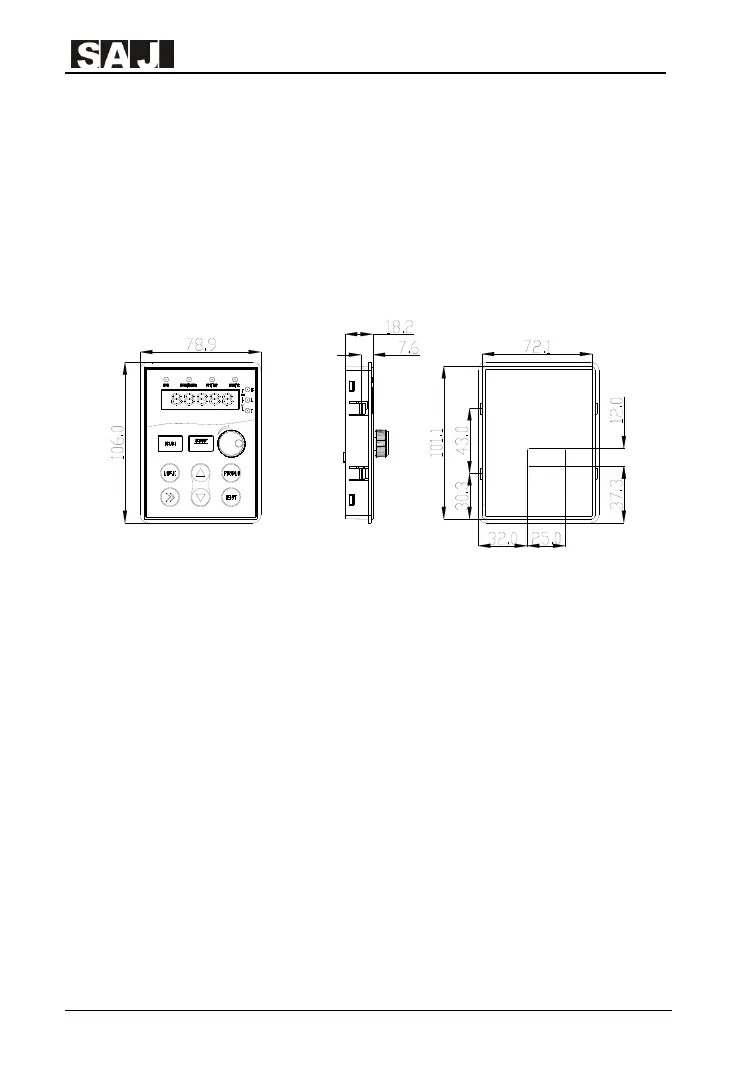

Table 1-7 Keyboard Dimension

■ Dimension Instruction

(1) There are four keyboard buckles; the distance between bottom and keyboard

surface is 7.6mm

(2)When cutting a rectangle hole for keyboard, it suggests adding 1mm more for the

length and width based on the dimension in this picture. Namely is Length 101.1mm

is increased to 102.1mm, and width 72.1mm is increased to 73.1mm.



■ Cover of Keyboard Window

It can select one window panel for installing keyboard externally in order to cover

the AC drive keyboard window.


