SAJ VM1000 - Start;Stop Control of Terminal Forward Rotation

VM1000 Series

‐56‐

4.3 Start/Stop control of terminal forward rotation
（1）Application
VFD common control mode is start/stop control. Generally, it is used in conveyor,
fan, and pump etc.
（2）Typical Wiring
In the control circuit, it can adopt 2 wiring or 3 wiring. The following is 2 wiring
scheme


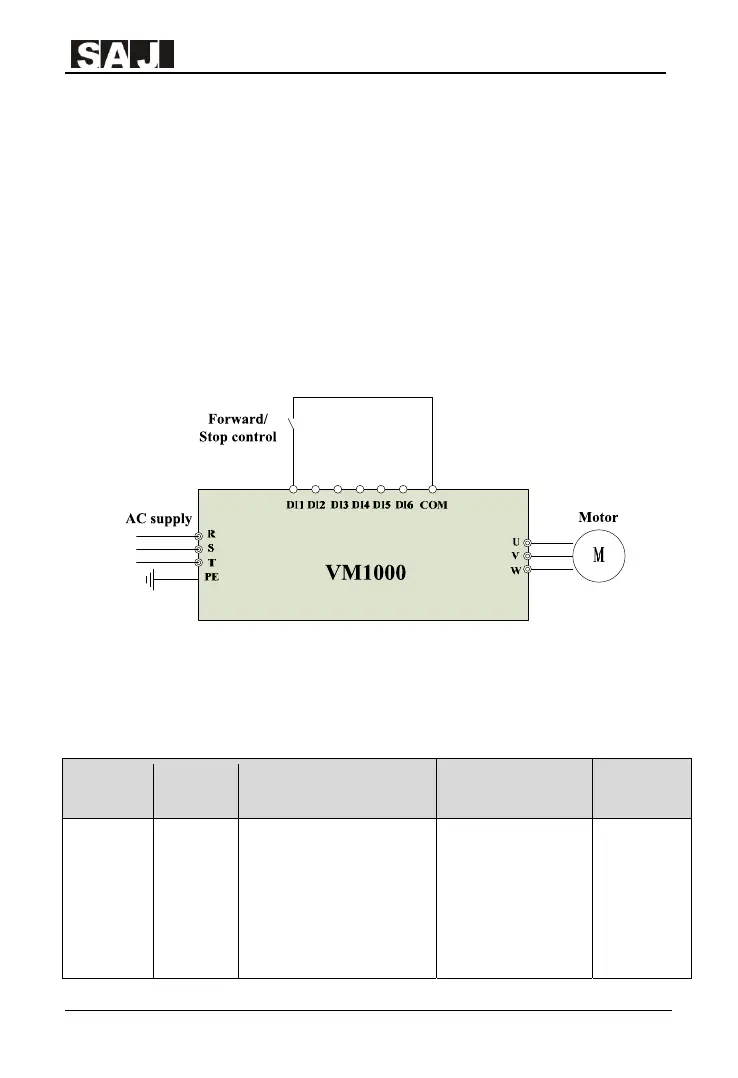

Figure 4-2 Start/Stop Control of Forward

（3）VM 1000 Parameter Setting
In F0 group, except F0.01, other parameter can refer to Table 4-2
Function
code
Name Setting Instruction Note
F0.01
Control
Command
Source
0: Keypad(with
LOCAL/REMOTE light off)
1: Terminals(with
LOCAL/REMOTE light on)
2: Communication(with
LOCAL/REMOTE LED
1. Modify the setting
as 1, namely conduct
the start and stop
control by terminal
input signal
2. Terminals(with
LOCAL/REMOTE
