VM1000 Series
‐27‐

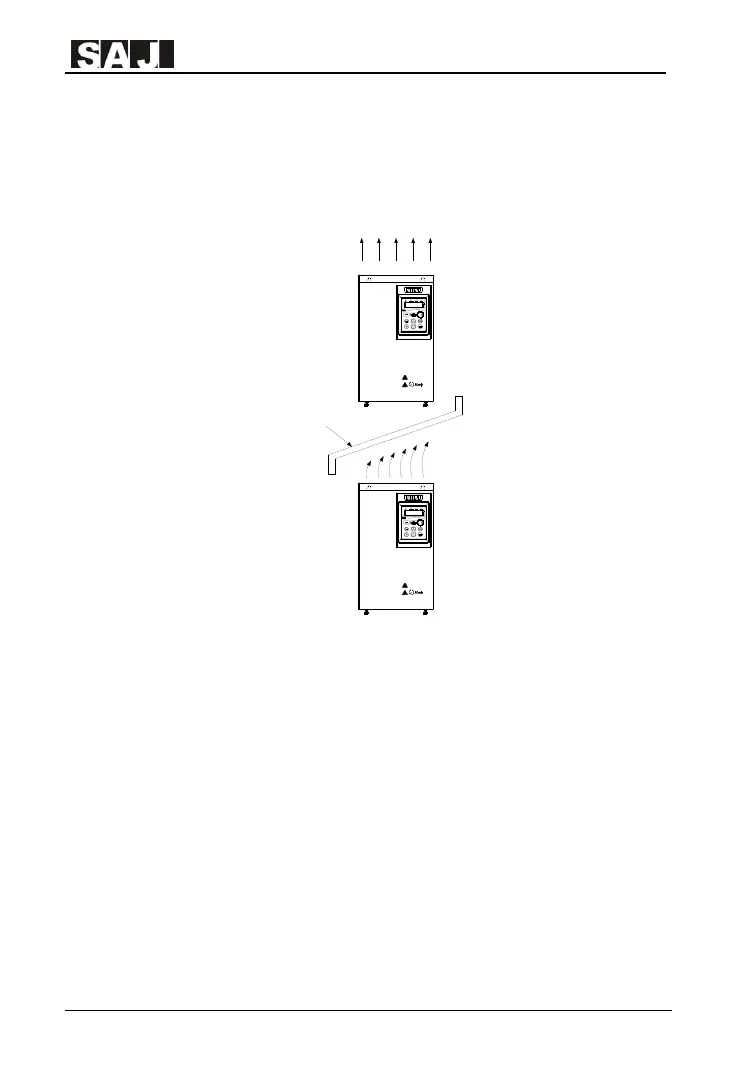

(2) Top/Bottom Installation
Insulation guide plate needs to be installed between two VFDs so as to separate airflow. Refer
to the requirements of recommended spatial distance.The picture below is the example of
Insulation guide plate.
Insulation guide plate
Figure 2-6 Diagram of Insulation Guide Plate
When two VFDs or more are installed side by side, increase 50mm at least for
every two; increase 100mm at least for the left and right, top and bottom
(3) Installation Method
Wall-mounting（11～110kW）
(4) Protection requirements
① Complete water-proof measures
② Preventing insects invasion,including adopt anti-rats and anti-pests measures
