Samson EB LTR 43 - Butterfl y Valve LTR 43-4 and LTR; Butterfl y Valve LTR

9-6
EB|LTR|43_EN
May 2023 edition
Subject to technical changes
Servicing
9.5.3 Butterfl y valve LTR|43-4 and LTR|43-9.4

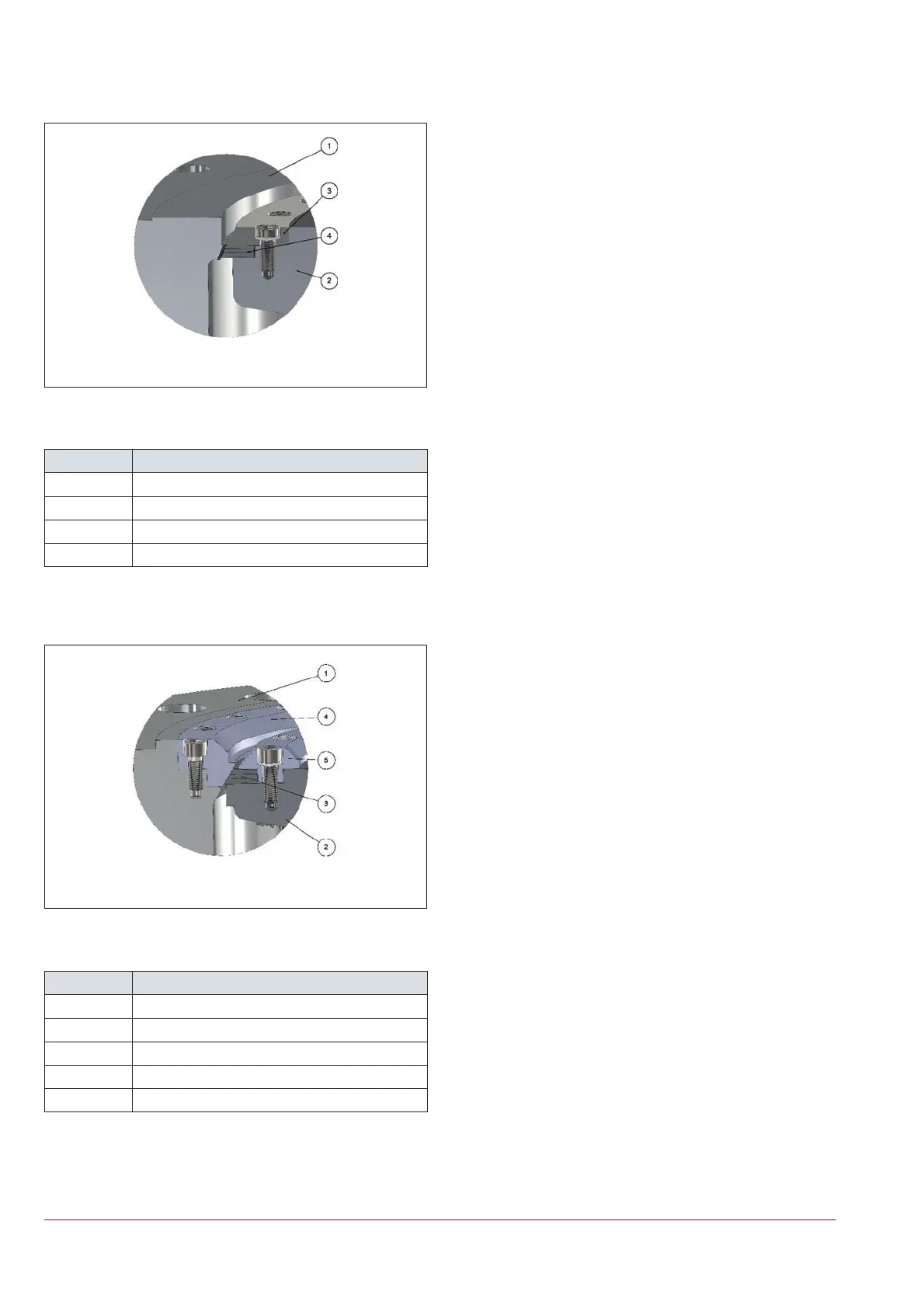

Figure|9-6: LTR43-4 and LTR43-9.4
Table|9-5: Parts list for LTR43-4 and LTR43-9.4
Pos. Designation
1 Body
2 Wedge-lock-washer
3 Clamping ring
4 Seal ring
9.5.4 Butterfl y valve LTR|43-9.9
Figure|9-7: LTR43-9.9
Table|9-6: Parts list for LTR43-9.9
Pos. Designation
1 Body
2 Wedge-lock-washer
3 Seal ring
4 Seat
5 Clamping ring
