Samson EB LTR 43 - Series LTR43-4, LTR43-9.4

15-6
EB|LTR|43_EN
May 2023 edition
Subject to technical changes
Annex
15.3.3 Series LTR43-4, LTR43-9.4

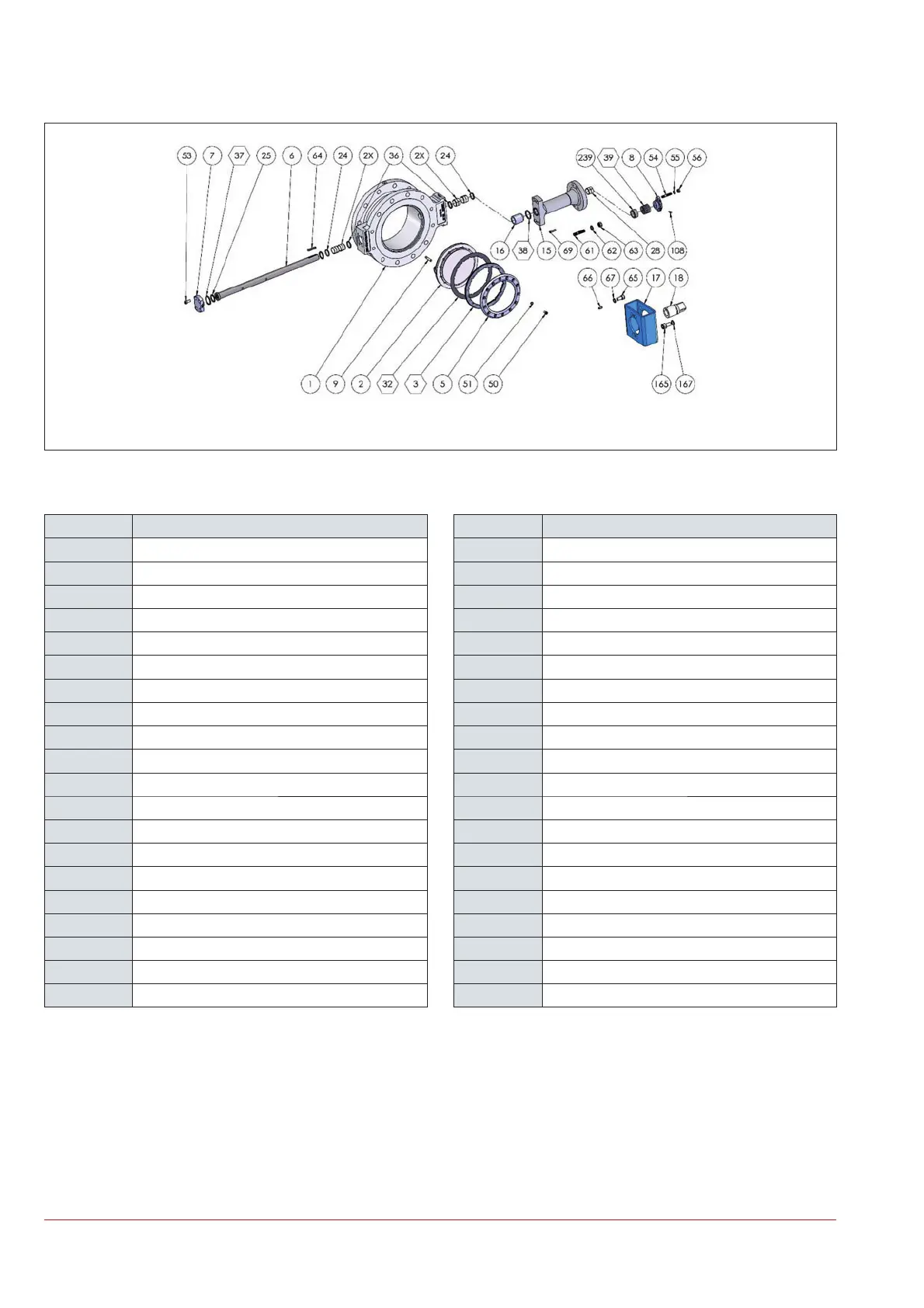

Figure|15-5: Exploded drawing of series LTR43-4, LTR43-9.4
Table|15-11: Parts list for series LTR43-4, LTR43-9.4
Pos. Designation Pos. Designation
1 Body 39* Packing
2 Disc 50 Screw
3* Seal ring 51 Wedge-lock-washer
5 Retaining ring 52 Screw
6 Shaft 53 Screw
7 Cover 54 Stud bolt
8 Gland 55 Washer
9 Pin 56 Nut
15 Extension 61 Stud bolt
16 Extension spacer 62 Wedge-lock-washer
17 Bracket 63 Nut
18 Coupling 64 Key
2X Bearing 65 Screw
24 Spacer ring 66 Pin
25 Thrust ring 67 Wedge-lock-washer
28 Bearing 69 Pin
32* Gasket disc 108 Screw
36 Bearing protector 165 Screw
37* Gasket cover 167 Wedge-lock-washer
38* Gasket extension 239 Support ring
* Recommended spare parts
