Samson EB LTR 43 - Series LTR43-9

15-7
EB|LTR|43_EN
May 2023 edition
Subject to technical changes
Annex
15.3.4 Series LTR43-9

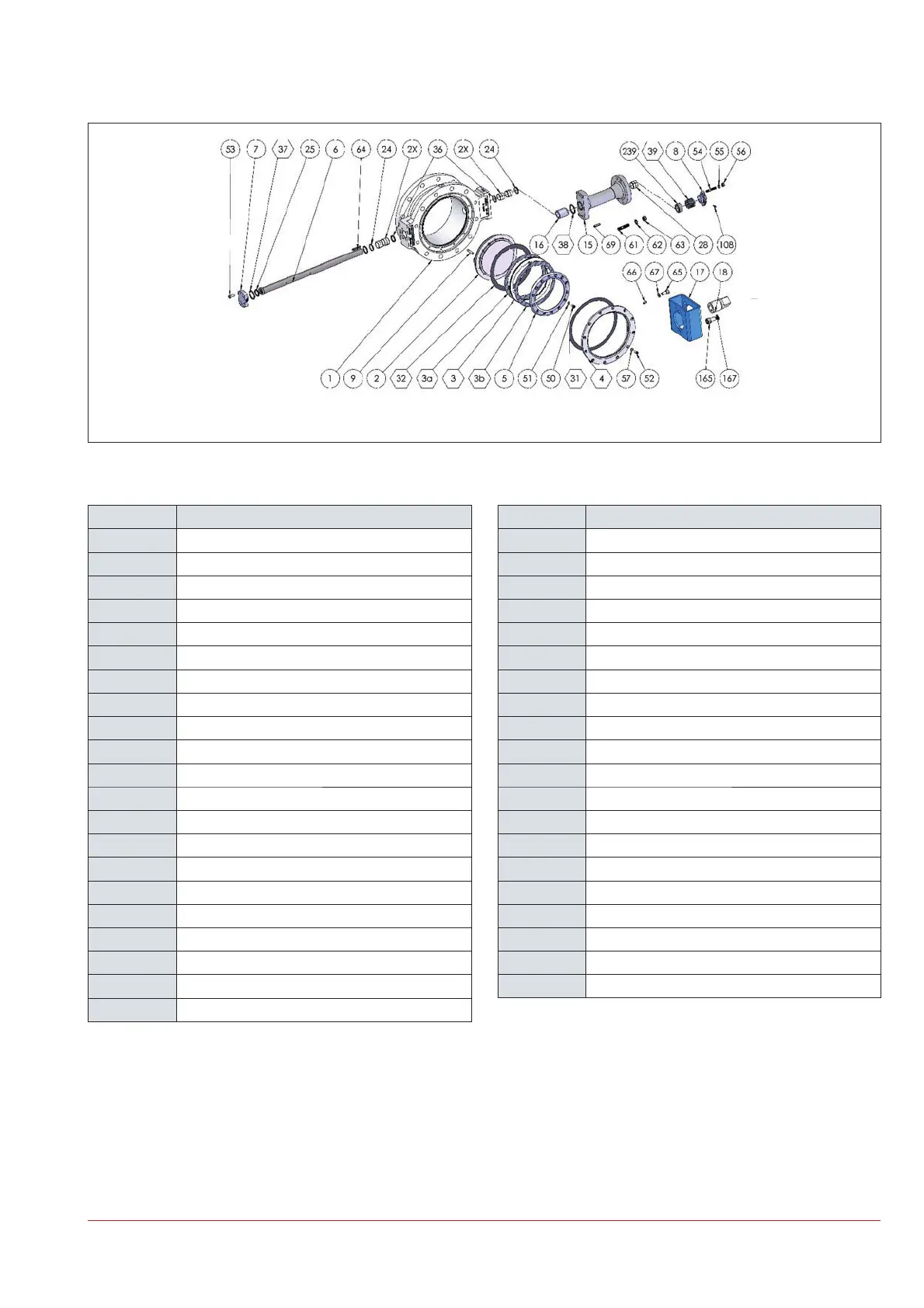

Figure|15-6: Exploded drawing of series LTR43-9
Table|15-12: Parts list for series LTR43-9
Pos. Designation Pos. Designation
1 Body 39* Packing
2 Disc 50 Screw
3* Seal ring 51 Wedge-lock-washer
4 Seat 52 Screw
5 Retaining ring 53 Screw
6 Shaft 54 Stud bolt
7 Cover 55 Washer
8 Gland 56 Nut
9 Pin 61 Stud bolt
15 Extension 62 Wedge-lock-washer
16 Extension spacer 63 Nut
17 Bracket 64 Key
18 Coupling 65 Screw
2X Bearing 66 Pin
24 Spacer ring 67 Wedge-lock-washer
25 Thrust ring 69 Pin
28 Bearing 108 Screw
32* Gasket disc 165 Screw
36 Bearing protector 167 Wedge-lock-washer
37* Gasket cover 239 Support ring
38* Gasket extension
* Recommended spare parts
