Shipment and on-site transport
Conditions for lifting
Ö Use a hook with a safety clamp as the suspension element,
see Figure 4-1, so that the sling cannot slip off the hook
during lifting and transport.
Ö Secure the sling against shifting and slipping off.
Ö Fasten the sling such that it can be removed again after
installation in the pipe.
Ö Avoid swinging and tipping the valve. Pay attention to the
centre of gravity!
Ö In the case of interruptions in work, do not leave the lifting
equipment suspended in the air for a long period of time.
Danger due to incorrect lifting and transport!
The lifting points for the lifting slings shown on the schematic
drawing serve as examples for most valve variants. On site the
conditions for lifting and transporting the butterfl y valve can
change however.
Ö The operator makes sure that the butterfl y valve is lifted and
transported safely.

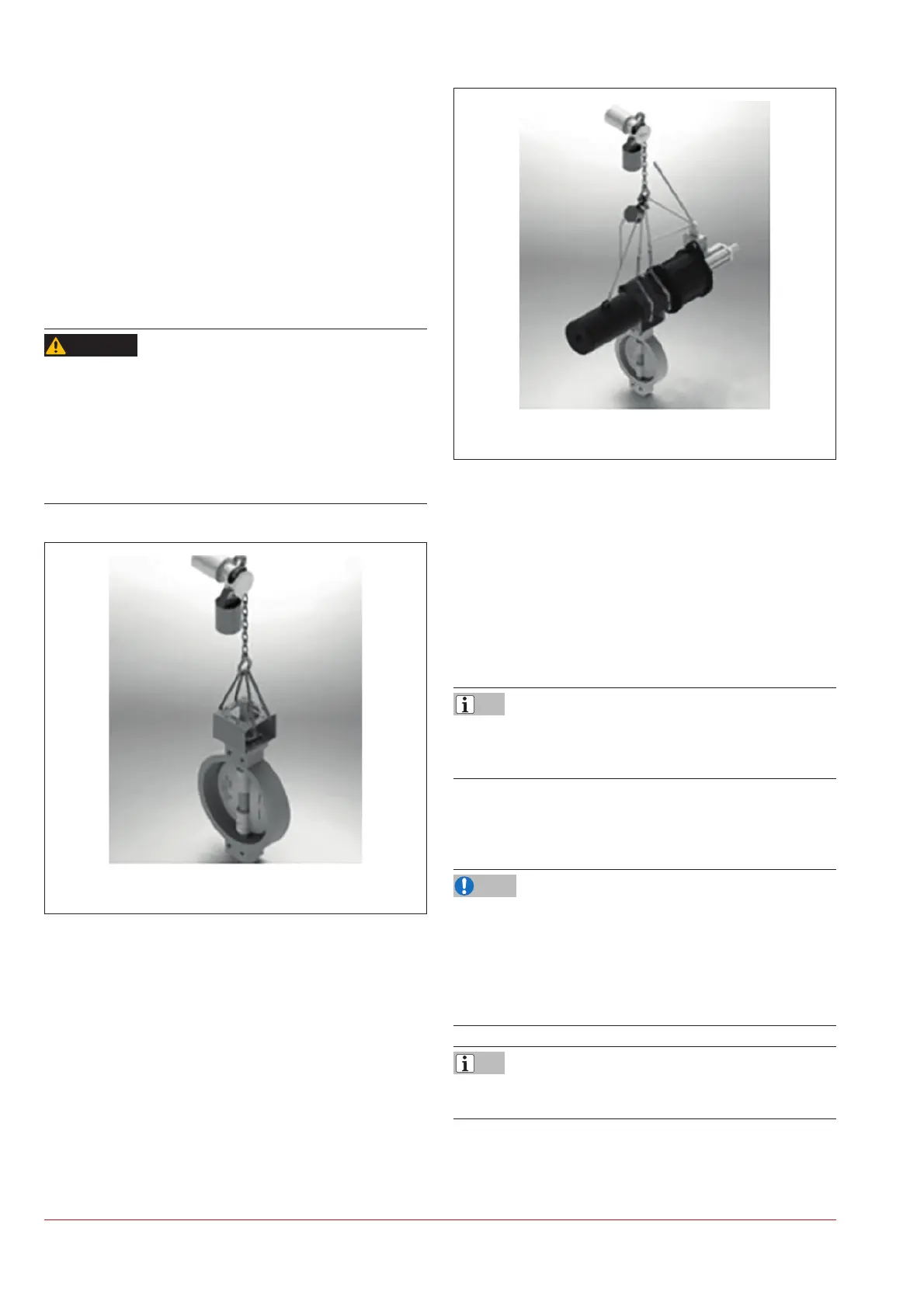

Figure|4-1: Sample lifting points for butterfl y valves
WARNING
Figure|4-2: Sample lifting points for valve
Version: Horizontal alignment
1. Use suitable tested slings and suitable fastening to lift the
valve using suitable lifting equipment.
2. Lift the valve carefully. Check if the load lifting equipment
holds.
3. Move the valve at a constant speed to the installation site.
4. Install the valve in the pipe, see chapter “5 Installation”.
5. Remove the lifting slings after successful installation.
Upon request, SAMSON LEUSCH can provide comprehensive
transport and lifting instructions. Contact SAMSON LEUSCH
through the nearest SAMSON offi ce.
4.4 Storing the valve
Damage to the valve due to improper storage!
Ö Comply with the storage conditions.
Ö Avoid long storage periods.
Ö In the case of deviating storage conditions and long storage,
contact SAMSON LEUSCH through the nearest SAMSON of-
fi ce.
SAMSON LEUSCH recommends checking the valve and the stor-
age conditions regularly during a longer storage period.
