Annex
15.3.1 Series LTR43-2, LTR43-9.2

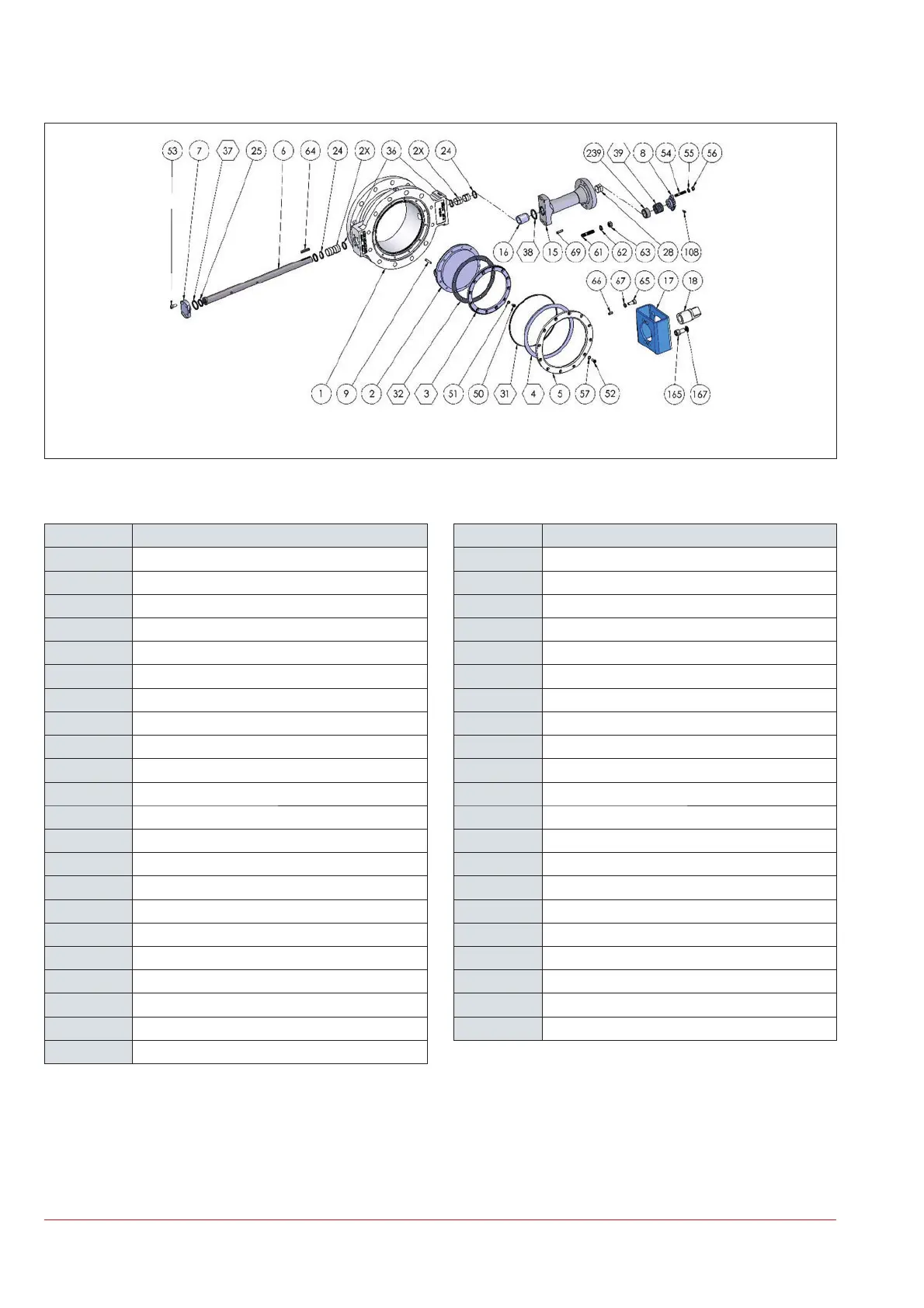

Figure|15-3: Exploded drawing of series LTR43-2, LTR43-9.2
Table|15-9: Parts list for series LTR43-2, LTR43-9.2
Pos. Designation Pos. Designation
1 Body 39* Packing
2 Disc 50 Screw
3* Seal ring 51 Wedge-lock-washer
4* Seat 52 Screw
5 Retaining ring 53 Screw
6 Shaft 54 Stud bolt
7 Cover 55 Washer
8 Gland 56 Nut
9 Pin 57 Wedge-lock-washer
15 Extension 61 Stud bolt
16 Extension spacer 62 Wedge-lock-washer
17 Bracket 63 Nut
18 Coupling 64 Key
2X Bearing 65 Screw
24 Spacer ring 66 Pin
25 Thrust ring 67 Wedge-lock-washer
28 Bearing 69 Pin
31* Gasket body 108 Screw
32* Gasket disc 165 Screw
36 Bearing protector 167 Wedge-lock-washer
37* Gasket cover 239 Support ring
38* Gasket extension
* Recommended spare parts
