Annex
15.3.2 Series LTR43-3

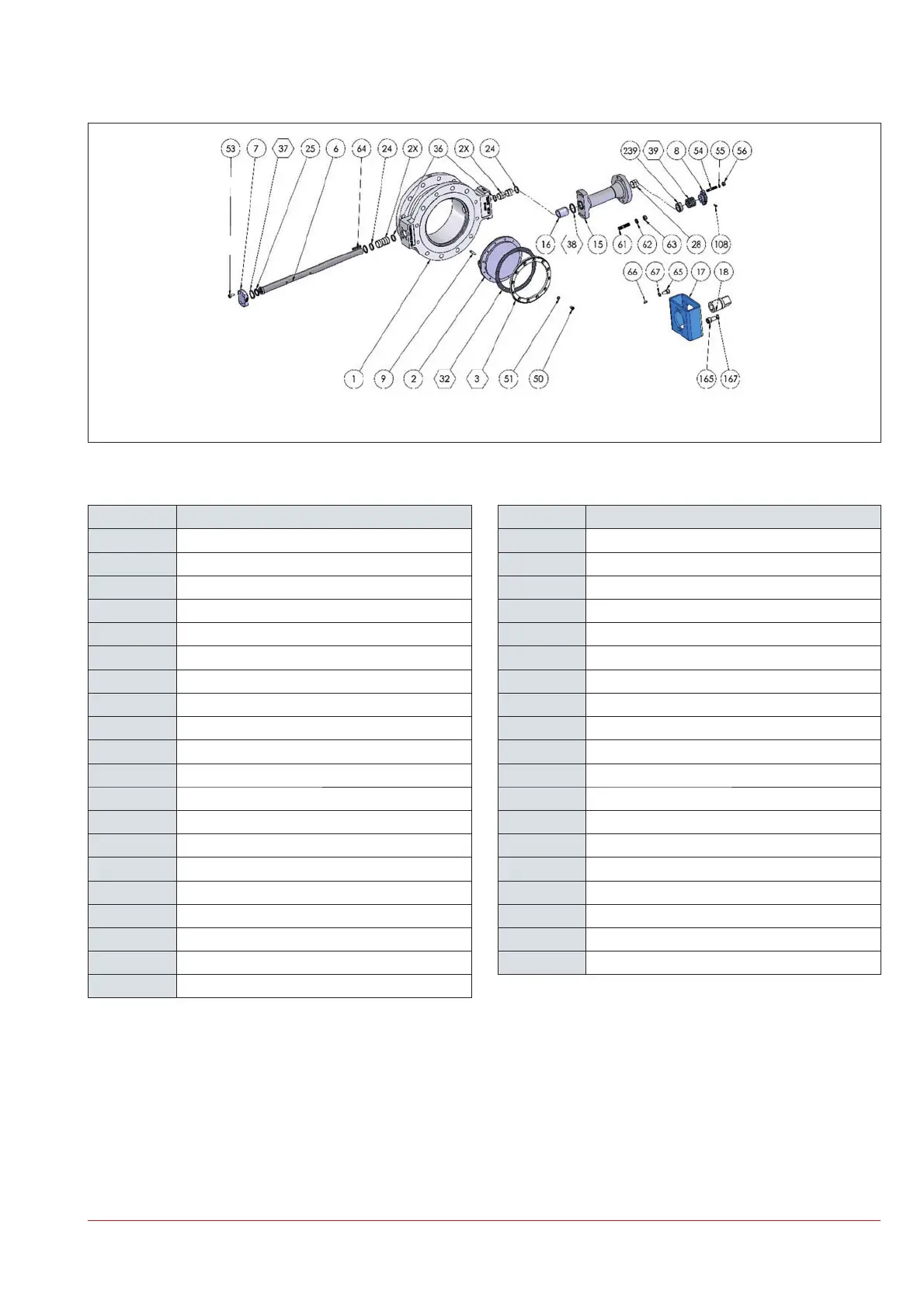

Figure|15-4: Exploded drawing of series LTR43-32
Table|15-10: Parts list for series LTR43-3
Pos. Designation Pos. Designation
1 Body 39* Packing
2 Disc 50 Screw
3* Seal ring 51 Wedge-lock-washer
6 Shaft 53 Screw
7 Cover 54 Stud bolt
8 Gland 55 Washer
9 Pin 56 Nut
15 Extension 61 Stud bolt
16 Extension spacer 62 Wedge-lock-washer
17 Bracket 63 Nut
18 Coupling 64 Key
2X Bearing 65 Screw
24 Spacer ring 66 Pin
25 Thrust ring 67 Wedge-lock-washer
28 Bearing 69 Pin
31* Gasket body 108 Screw
32* Gasket disc 165 Screw
36 Bearing protector 167 Wedge-lock-washer
37* Gasket cover 239 Support ring
38* Gasket extension
* Recommended spare parts
