1-2. Deciding on where to install the air conditioner
(1) Indoor unit
◆ There must be no obstacles near the air inlet and outlet.
◆ Install the indoor unit on a wall or ceiling that will support the weight.
◆ Maintain sufficient clearance around the indoor unit.
◆ Make sure that the water dripping from the drain hose drains away correctly and safely.
◆ Ensure units are placed so that they cannot be touched by the general public.
(2) Outdoor unit
◆ The outdoor unit must NEVER be placed on its side or upside down, as the compressor
lubrication oil will run into the cooling circuit and seriously damage the unit.
◆ Choose a location that is dry and sunny, but not exposed to direct sunlight or strong winds.
◆ Do not block any passageways or thoroughfares.
◆ Choose a location where the noise of the unit in operation and the discharge air from
the unit will not disturb any neighbours.
◆ Choose a position that enables the piping and wiring to be easily connected to the indoor unit.
◆ Install the outdoor unit on a flat, stable surface that can support its weight and does not
generate any unnecessary noise and vibration.
◆ Position the outdoor unit so that the air flow is directed towards an open area.
◆ Maintain sufficient clearance around the outdoor unit, especially from a radio, computer,
stereo system, etc.
◆ If the outdoor unit is installed on a raised structure, ensure that its base is firmly fixed in position.
◆ Make sure that the water draining from the drain hose runs away correctly and safely.

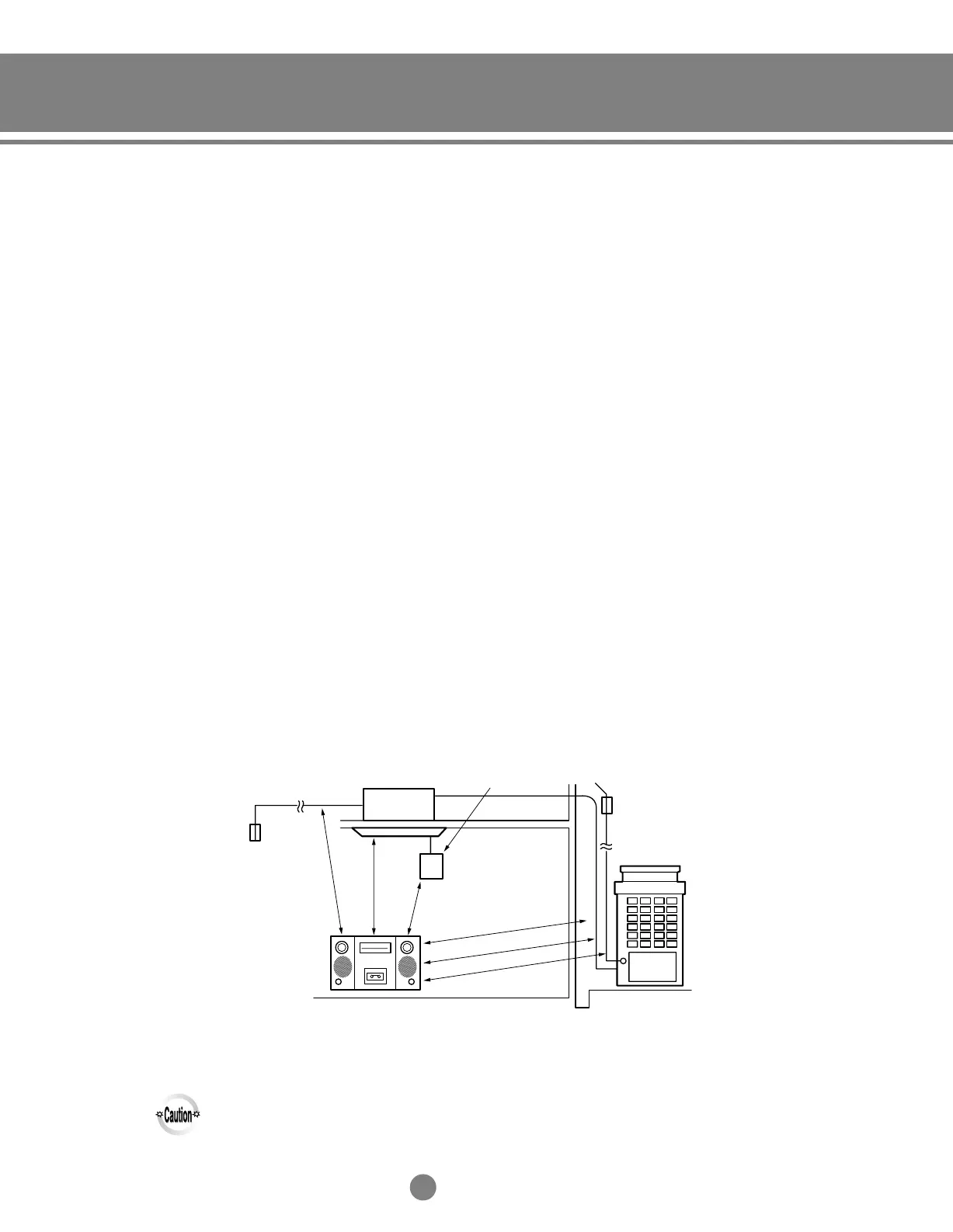

5ft. or more
Indoor Unit
Fuse
Outdoor Unit
Remote Controller
3ft. or more
3ft. or more
5ft. or more
5ft. or more
5ft. or more
Fuse
Stereo
◆
This device must be installed according to the national electrical rules and local sides (Where applicable).
