. Installation
Λ
9. Charge/recovery of refrigerant
46
ΛΛ
9-2. Additional refrigerant amount calculation method
(1) The amount of refrigerant filled in the outdoor when the product is
delivered (on the base of piping 30ft.)
(2) Additional amount of refrigerant as per the pipe diameter and length
(liquid pipe based)
Pipe diameter (inch)
Additional amount of
refrigerant(oz/ft.)
1/4
0.5
3/8
0.9
1/2(
✻✻
040
✻✻
~
✻✻
070
✻✻
)
1.3
1/2(
✻✻
08
✻✻
~
✻✻
100
✻✻
)
1.5

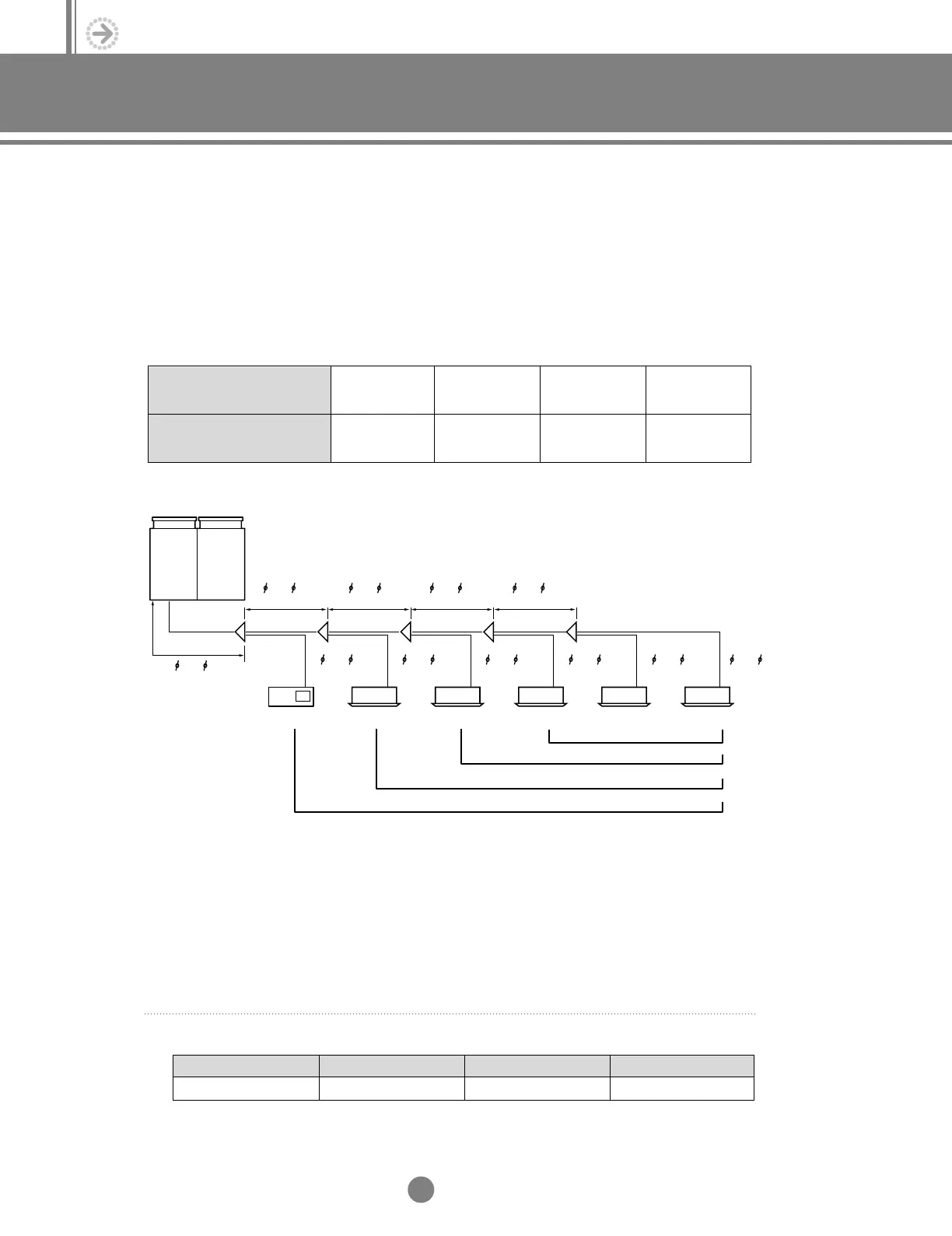

✼ Example of additional refrigerant amount calculation (In case of 7.0HP)
●
Additional amount of refrigerant = additional amount of refrigerant as per the total pipe length
●
Arrangement: liquid pipe diameter -gas pipe diameter - pipe length
Additional amount of refrigerant =(ø1/2 liquid pipe lengthX1.3oz/ft.)+(ø3/8 liquid pipe lengthX0.9oz/ft.)+
(ø1/4 liquid pipe lengthX0.5oz/ft.)
=(60ft.X1.3oz/ft.)+(75ft.X0.9oz/ft.)+(75ft.X0.5oz/ft.)
=183oz-α
✻
1)
A B C D E
1
23456
7200W
10400W
14400W
21600W
7200W 4000W 3200W 3200W 2000W 2000W
3/8 - 3/4 -
15ft.
1/2 - 1 -
60ft.
3/8 - 3/4 -
15ft.
3/8 - 5/8 -
15ft.
3/8 - 5/8 -
15ft.
1/4 - 1/2 -
15ft.
1/4 - 1/2 -
15ft.
1/4 - 1/2 -
15ft.
1/4 - 1/2 -
15ft.
1/4 - 1/2 -
15ft.
3/8 - 5/8 -
15ft.
✻ 1) The value of α
5.0HP
0g
6.0HP
1000g
7.0/7.5HP
0g
8.0/10.0HP
1100g
5-2.Installation_TM_E_06890 2/27/03 10:16 AM Page 46
