11. Cautions for refrigerant leaks
52
ΛΛ
11-1. Introduction
The DVM system, like most other air conditioning systems, uses R-22 as its refrigerant. R-22 itself is an
entirely safe non-toxic, non-combustible refrigerant but care must nevertheless be taken to ensure that the
air conditioning facilities are installed in a room which is sufficiently large to avoid a *dangerous
concentration of refrigerant gas in the unlikely event of a serious leak in the system.
* Dangerous concentration
Dangerous concentration means the maximum concentration of CFC gas which can be dealt quickly and with
without damage to the person in the case of a leak of refrigerant into the air. The unit of measurement of the
dangerous concentration is lbs/ft
3
(the weight in lbs of CFC gas in 1ft
3
of air) for ease of calculation.
Dangerous concentration of R-22: 0.02 lbs/ft
3

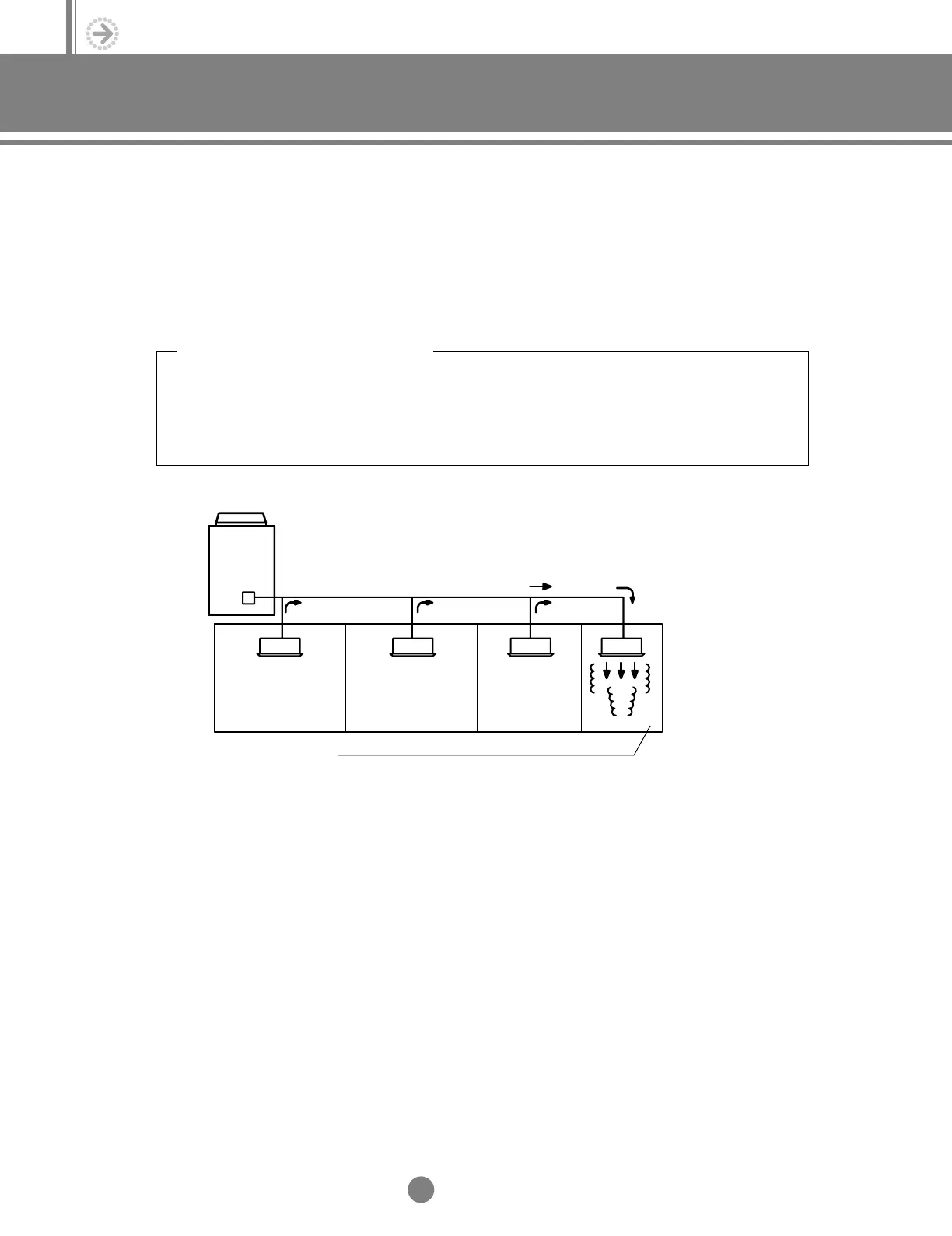

Outdoor unit
Indoor unit
System No. 1
Direction of
refrigerant flow
Room where refrigerant leak has occurred
(Outflow of all the refrigerant in System No. 1)
