Samsung Electronics DVM Series - Duct Type (Built-In)

ΙΙΙ . Indoor unit
5. Dimension
ΙΙΙ
32

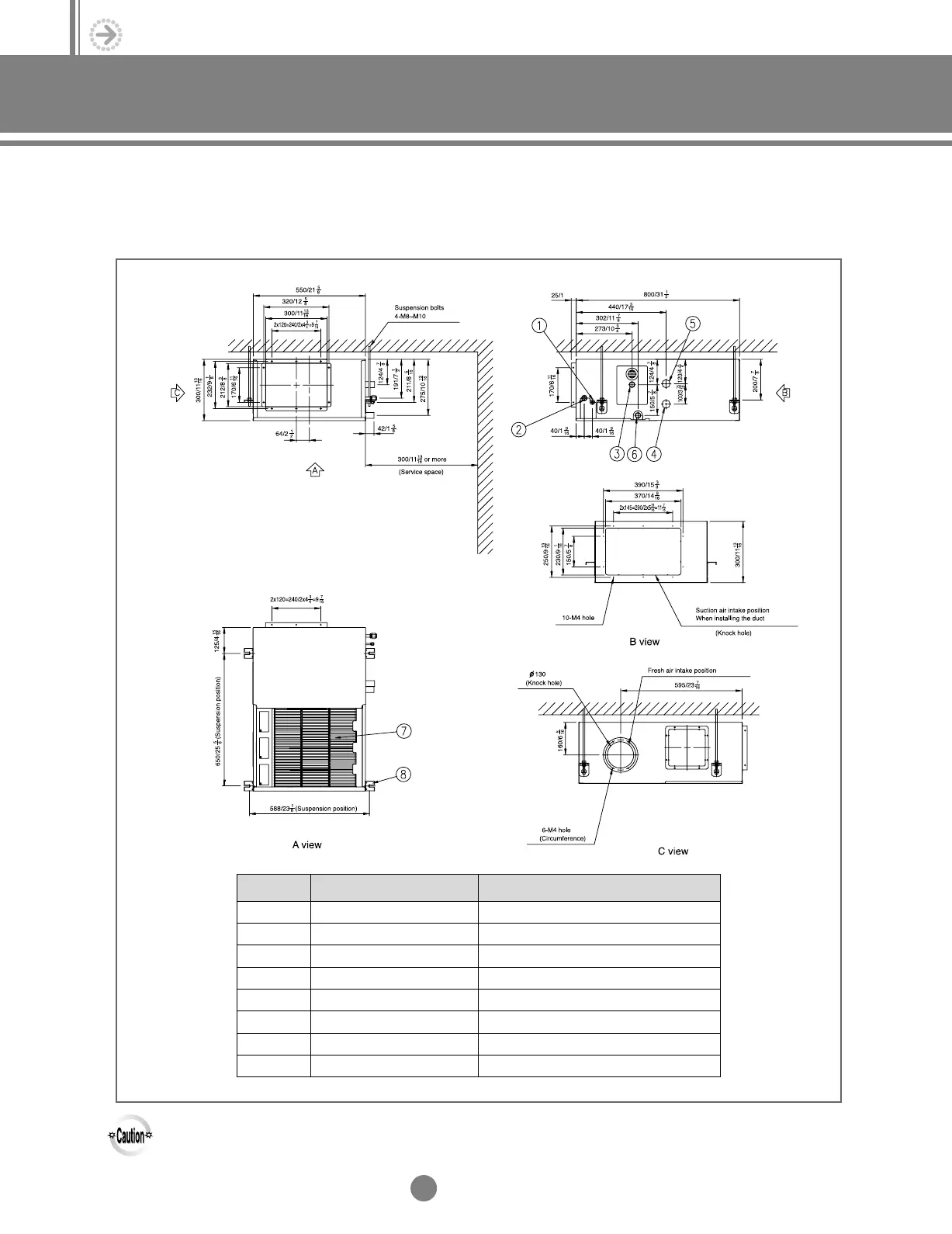

5-4. Duct type (Built-in)
(1) 2.0kW ~ 4.0kW
Unit : mm/inch
◆ If you want to install optional parts, refer to an appropriate installation manual.
No. Name Description
1
2
3
4
5
6
7
8
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Interunit wiring port
Power wiring port
Drain pipe connection
Air filter
Hook
ø6.35(1/4”) Flare
ø12.70(1/2”) Flare
OD29(1 1/8”) ID25(1”) (without drain pump)
OD29(1 1/8”) ID25(1”) (without drain pump)
For M8~M10
