ΙΙΙ
33

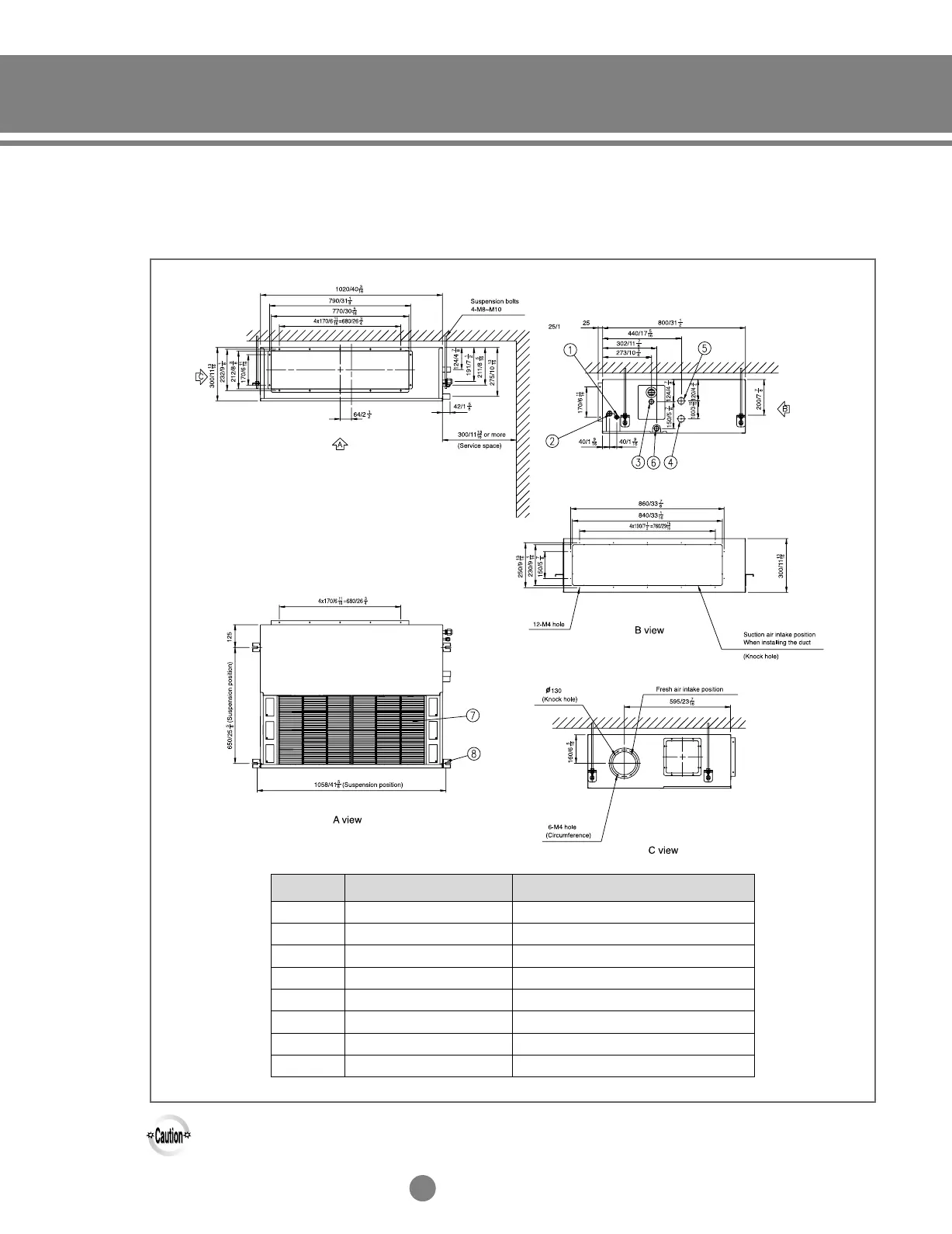

No. Name Description
1
2
3
4
5
6
7
8
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Interunit wiring port
Power wiring port
Drain pipe connection
Air filter
Hook
ø9.52(3/8”) Flare
ø15.88(5/8”) Flare
OD29(1 1/8”) ID25(1”) (without drain pump)
OD29(1 1/8”) ID25(1”) (without drain pump)
For M8~M10
(2) 5.2kW ~ 7.2kW
Unit : mm/inch
◆ If you want to install optional parts, refer to an appropriate installation manual.
