Samsung Electronics DVM Series - 5 Dimension; 1-Way Cassette Type

ΙΙΙ . Indoor unit
5. Dimension
ΙΙΙ
28

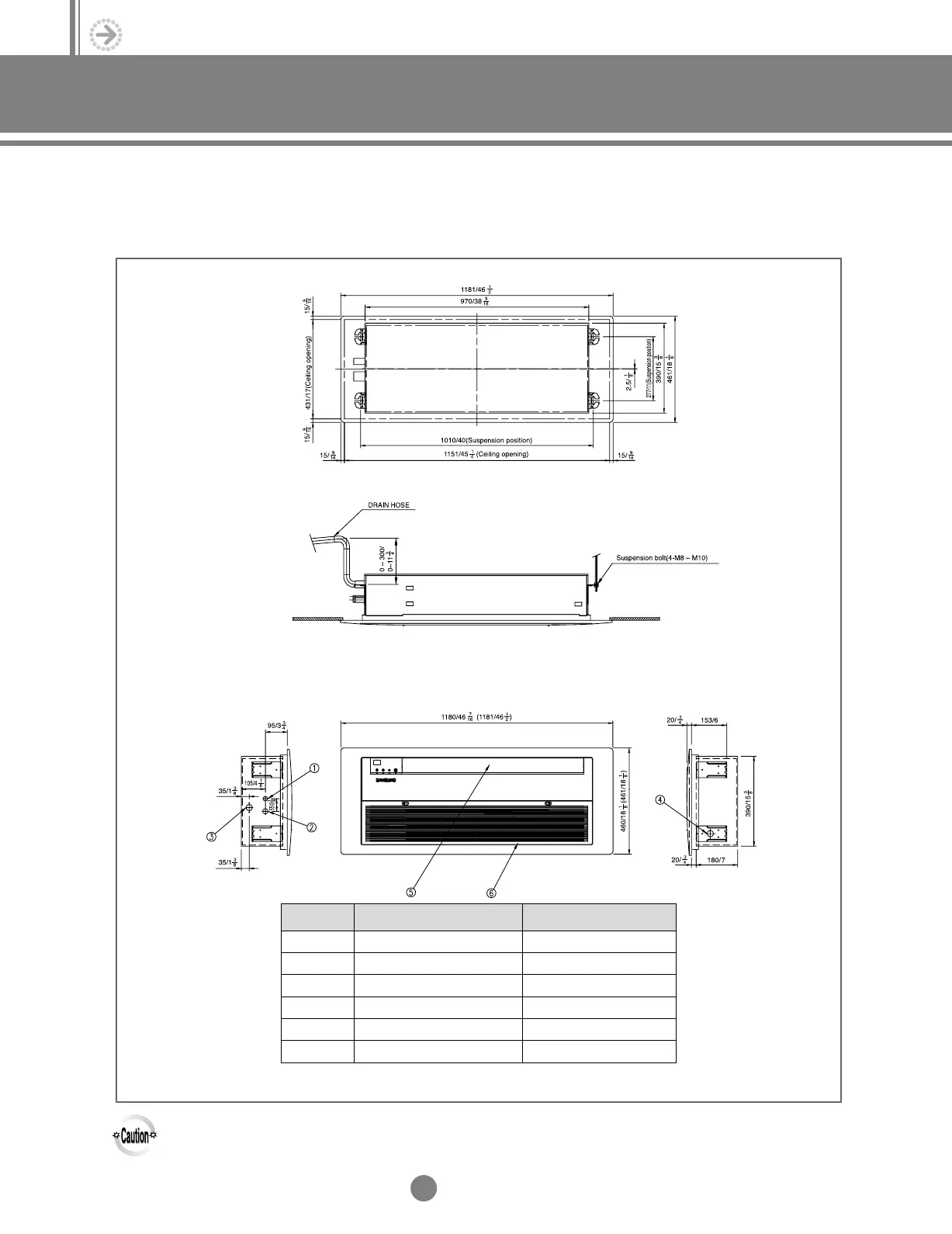

5-1. 1-way cassette type
Unit : mm/inch
◆ Check the position of remote control sensor and indicators before installing the unit.
◆ If you want to install optional parts, refer to an appropriate installation manual.
No. Name Description
1
2
3
4
5
6
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Power supply connection
Air discharge grille
Air suction grille
ø6.35(1/4”) Nipple
ø12.70(1/2”) Flare
OD29(1 1/8”) ID25(1”)
