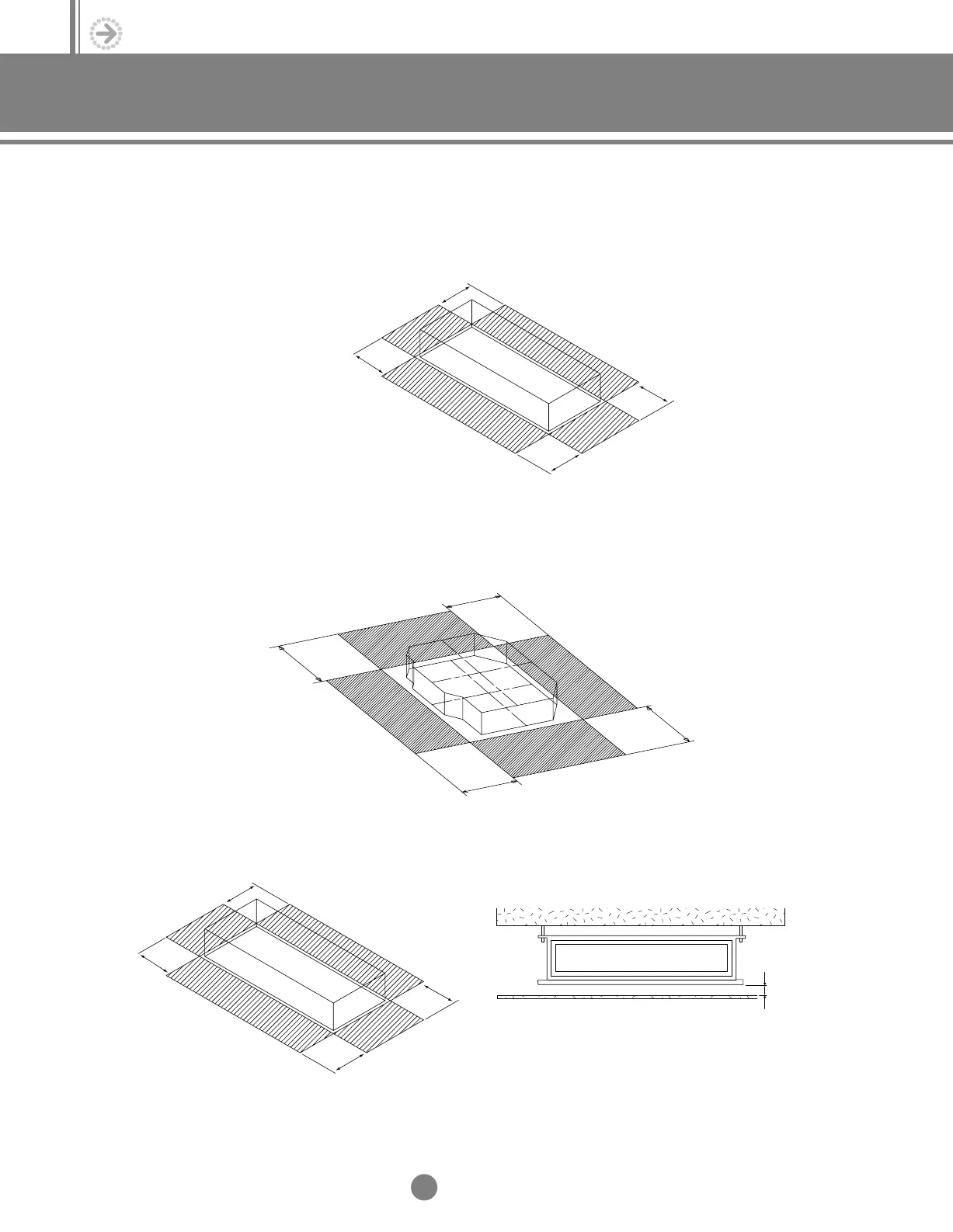

1-3. Space requirements for the air conditioner
(1) Indoor unit
1) 1-way cassette type
2) 4-way cassette type
3) Duct type (Low silhouette)
5
ft or m
ore
5ft or more
5ft or more
5
ft or m
ore
You must have 1/4” or more space between the ceiling and
the bottom of indoor unit. Otherwise, the noise from the
vibration of indoor unit may bother the user.
1/4” min
5ft or m
ore
5ft or m
ore
5ft or more
5ft or more
15ft or more
5ft or m
ore
5ft or more
5ft or more
