1. Product
8
. Installation
Λ
Λ
Unit : inch

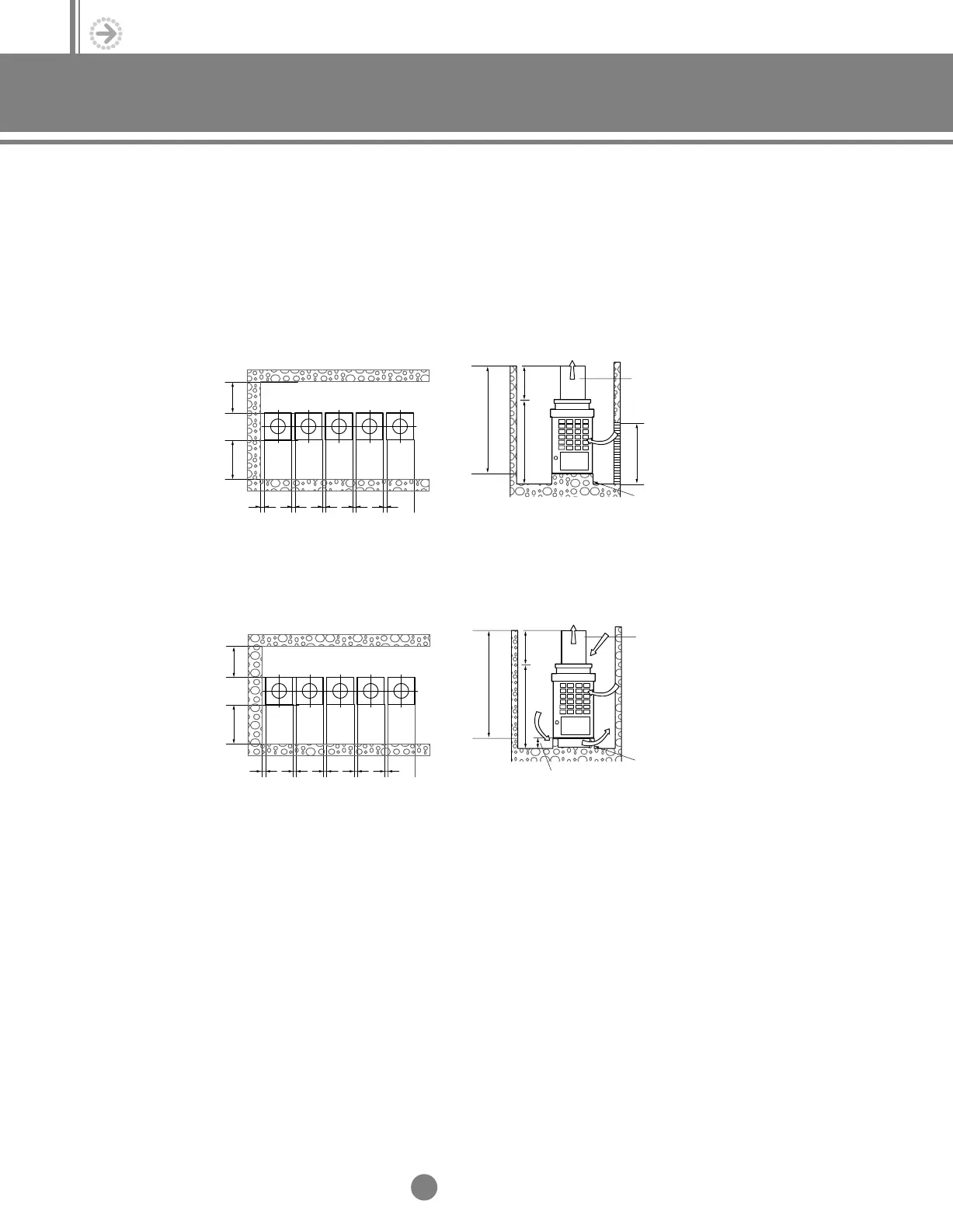

When the outdoor unit is placed lower than the outdoor wall.
a. The case of installing gallery
- Keep the intake fan speed under 5ft./s from the gallery.
- Make the height of discharge duct (HD) be H-h.
H
h
HD
Ve
12 or
more
8 or
more
8 or
more
8 or
more
8 or
more
4 or
more
40 or more
24 or
more
Front
Discharge duct
Supporting unit
b. The case of not installing gallery
- Install an outdoor supporting unit 20~80” in height.
- Make the height of discharge duct (HD) be H-h’
H
h
HD
12 or
more
20~40
Supporting unit
Discharge duct
8 or
more
4 or
more
8 or
more
Front
8 or
more
8 or
more
24 or
more
5-1.Installation_TM_E_06890 2/27/03 10:15 AM Page 8
