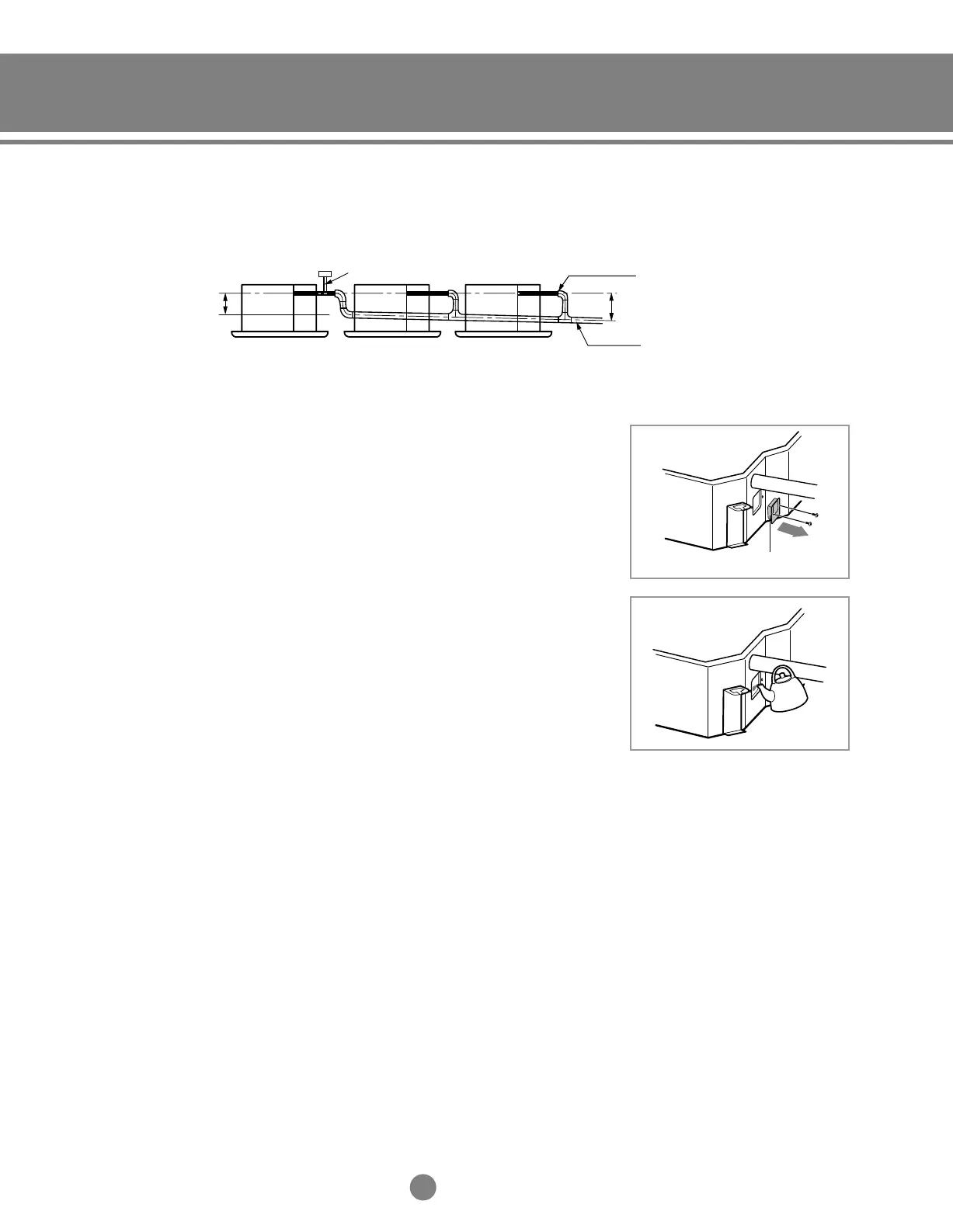

If a common drain line is installed, refer to the figure below.
NN
NN
oo
oo
tt
tt
ee
ee
Drain clamp
Air ventilation
Concentrated drain hose
1/100 or
more slope
4” or more
Testing the drainage
1) Remove two screws on the water supply intake cover and
pull out the cover.
2) Pour water into the indoor unit as shown in figure.
3) Confirm that the water flows out through the drain hose.
4) Reassemble the cover drain pump and the screws.
Cover water supply intake
You should test the drainage after completing the installation.
Prepare about 4 pints of water.
◆ You can check the drain only when the air conditioner
is in cool mode.
NN
NN
oo
oo
tt
tt
ee
ee
◆ For installation of another drain hose, refer to an appropriate
installation manual.
NN
NN
oo
oo
tt
tt
ee
ee
◆ If you do not pour water inside the water supply intake,
water may spill from the indoor unit.
NN
NN
oo
oo
tt
tt
ee
ee
