Part name How to do Descriptive Picture
Door Switch
In Freezer
1. Remove the freezer drawer bin by using a flat-
blade(-) screwdriver. (Refer to the picture)
2. Disconnect the housing connector part.
4. Disassembly and Assembly

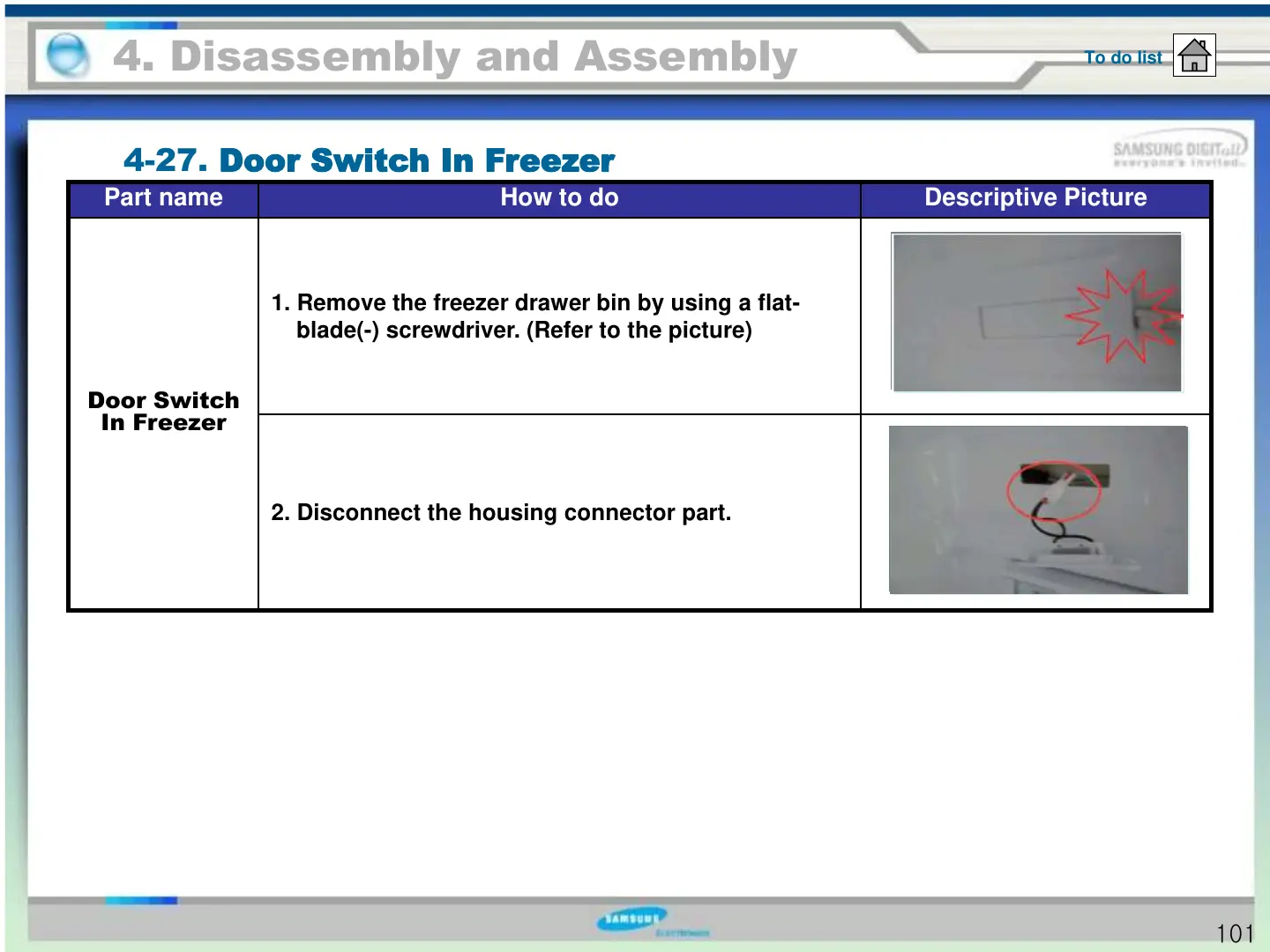

4-27. Door Switch In Freezer
To do list
101
