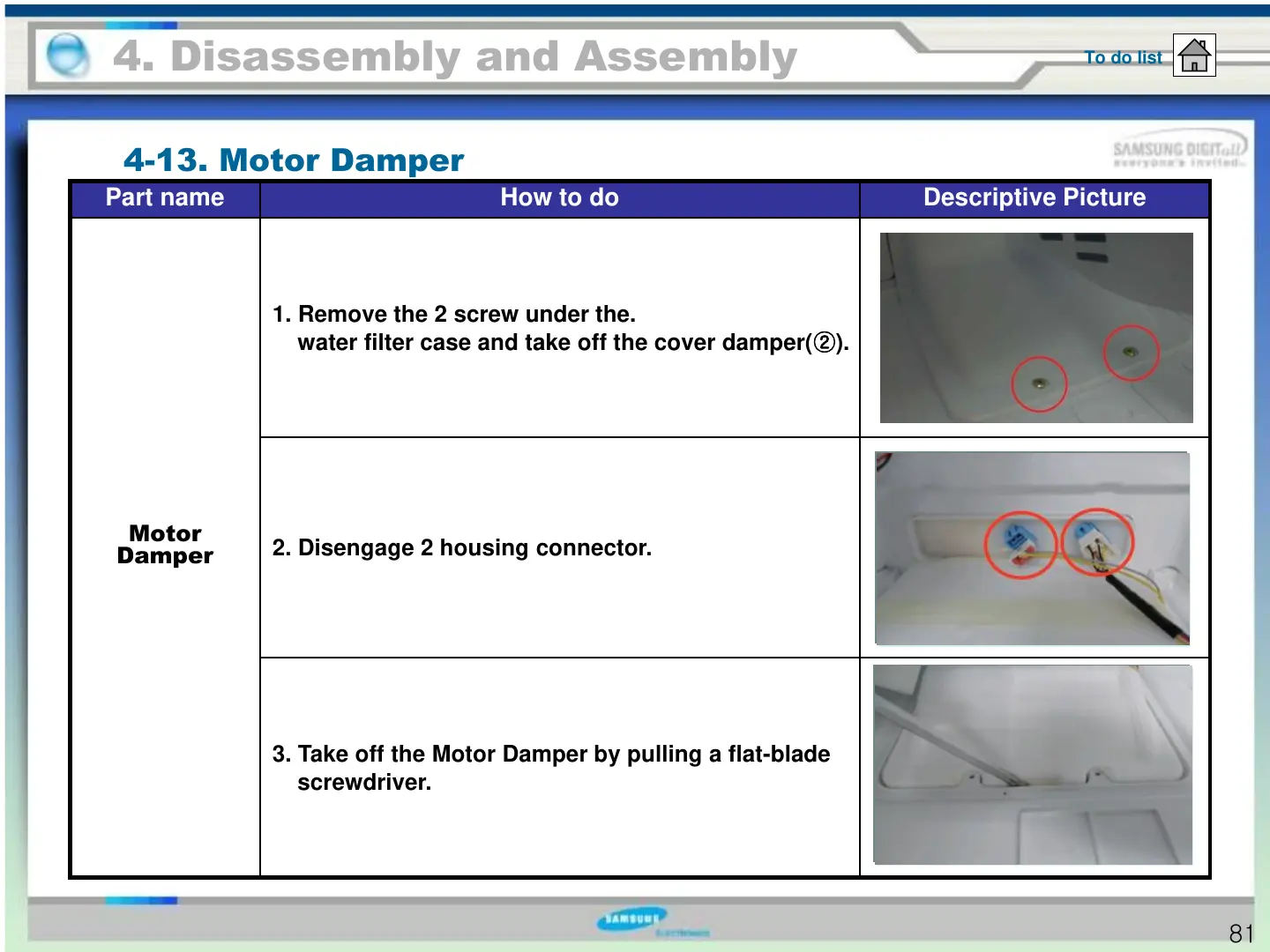

Part name How to do Descriptive Picture
Motor
Damper
1. Remove the 2 screw under the.
water filter case and take off the cover damper(②).
2. Disengage 2 housing connector.
3. Take off the Motor Damper by pulling a flat-blade
screwdriver.
4. Disassembly and Assembly
4-13. Motor Damper
To do list
81
