Samsung MKV190CL2B/E01 - 5-2. Diagnostic method according to the trouble symptom (Flow Chart)

℃ ℉ Voltage Resistance ℃ ℉ Voltage Resistance
-50 -58 4.694 153319 -36 -32.8 4.385 71246
-49 -56.2 4.677 144794 -35 -31 4.356 67634
-48 -54.4 4.659 136798 -34 -29.2 4.326 64227
-47 -52.6 4.641 129294 -33 -27.4 4.296 61012
-46 -50.8 4.622 122248 -32 -25.6 4.264 57977
-45 -49 4.602 115631 -31 -23.8 4.232 55112
-44 -47.2 4.581 109413 -30 -22 4.199 52406
-43 -45.4 4.560 103569 -29 -20.2 4.165 49848
-42 -43.6 4.537 98073 -28 -18.4 4.129 47431
-41 -41.8 4.514 92903 -27 -16.6 4.093 45146
-40 -40 4.490 88037 -26 -14.8 4.056 42984
-39 -38.2 4.465 83456 -25 -13 4.018 40938
-38 -36.4 4.439 79142 -24 -11.2 3.980 39002
-37 -34.6 4.412 75077 -23 -9.4 3.940 37169

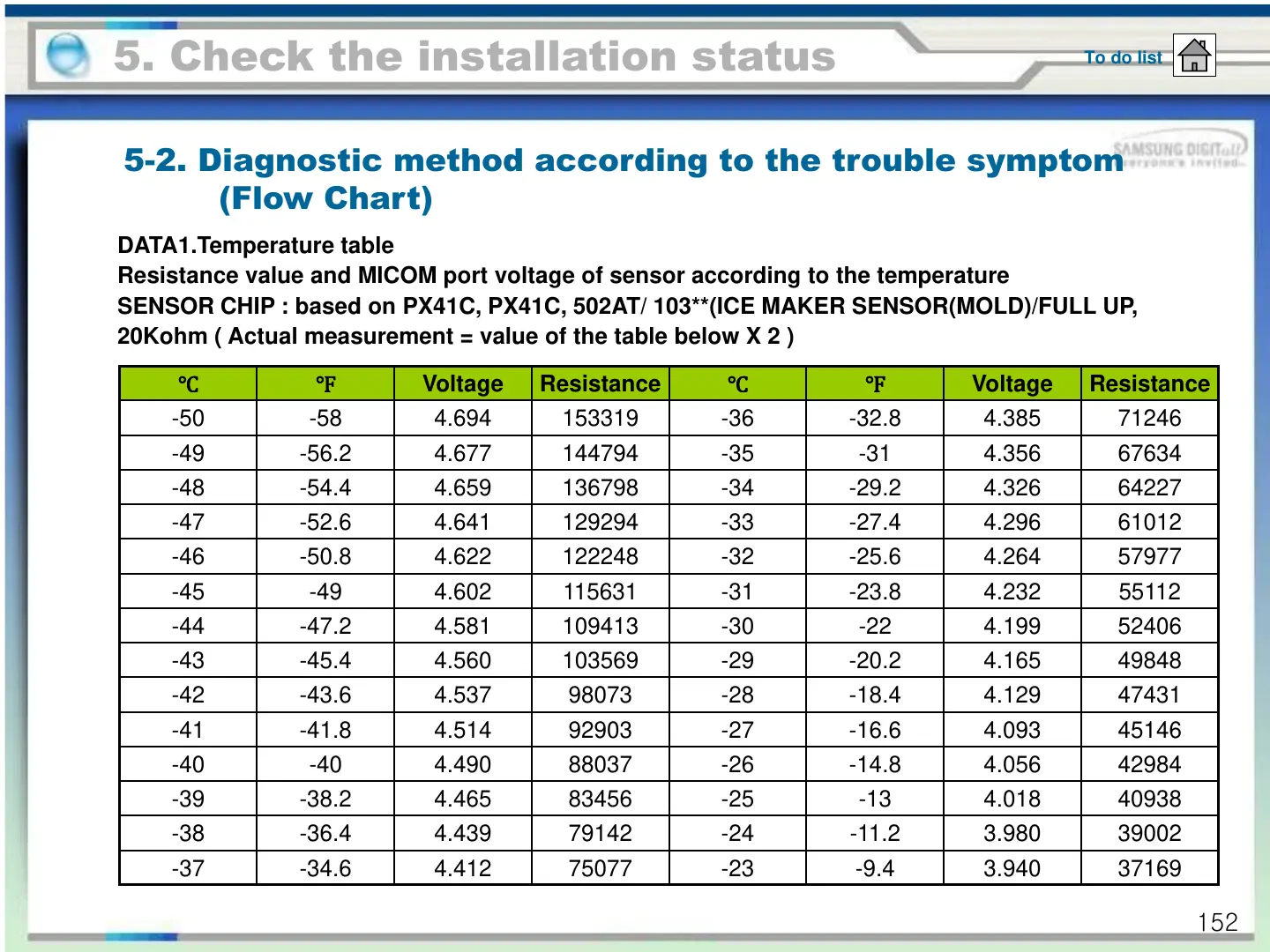

5-2. Diagnostic method according to the trouble symptom
(Flow Chart)
DATA1.Temperature table
Resistance value and MICOM port voltage of sensor according to the temperature
SENSOR CHIP : based on PX41C, PX41C, 502AT/ 103**(ICE MAKER SENSOR(MOLD)/FULL UP,
20Kohm ( Actual measurement = value of the table below X 2 )
