Part name How to do Descriptive Picture
Comp Cooling
Fan Motor
1. Remove the screw with a flat blade screwdriver.
2. Remove the motor fan by pulling the fan out
while graping the motor part.
3. Unscrew 2 screws fixed in the motor.
4. Disassembly and Assembly

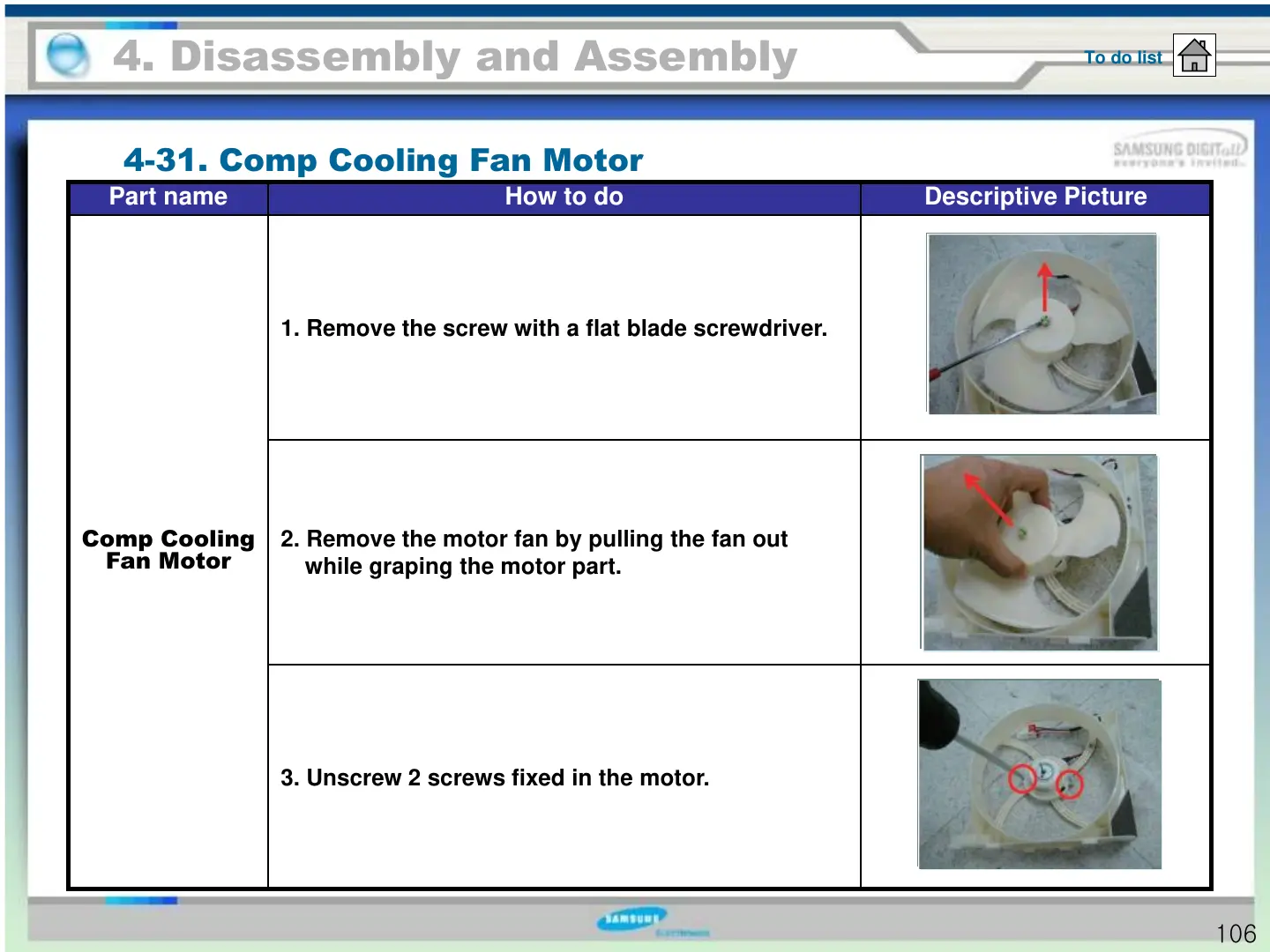

4-31. Comp Cooling Fan Motor
To do list
106
