Part name How to do Descriptive Picture
Evaporator
In Freezer
1. Remove the housing connector part left one.
2. Remove the evaporator by pulling the lower part
of the evaporator while lifting it up.
4. Disassembly and Assembly

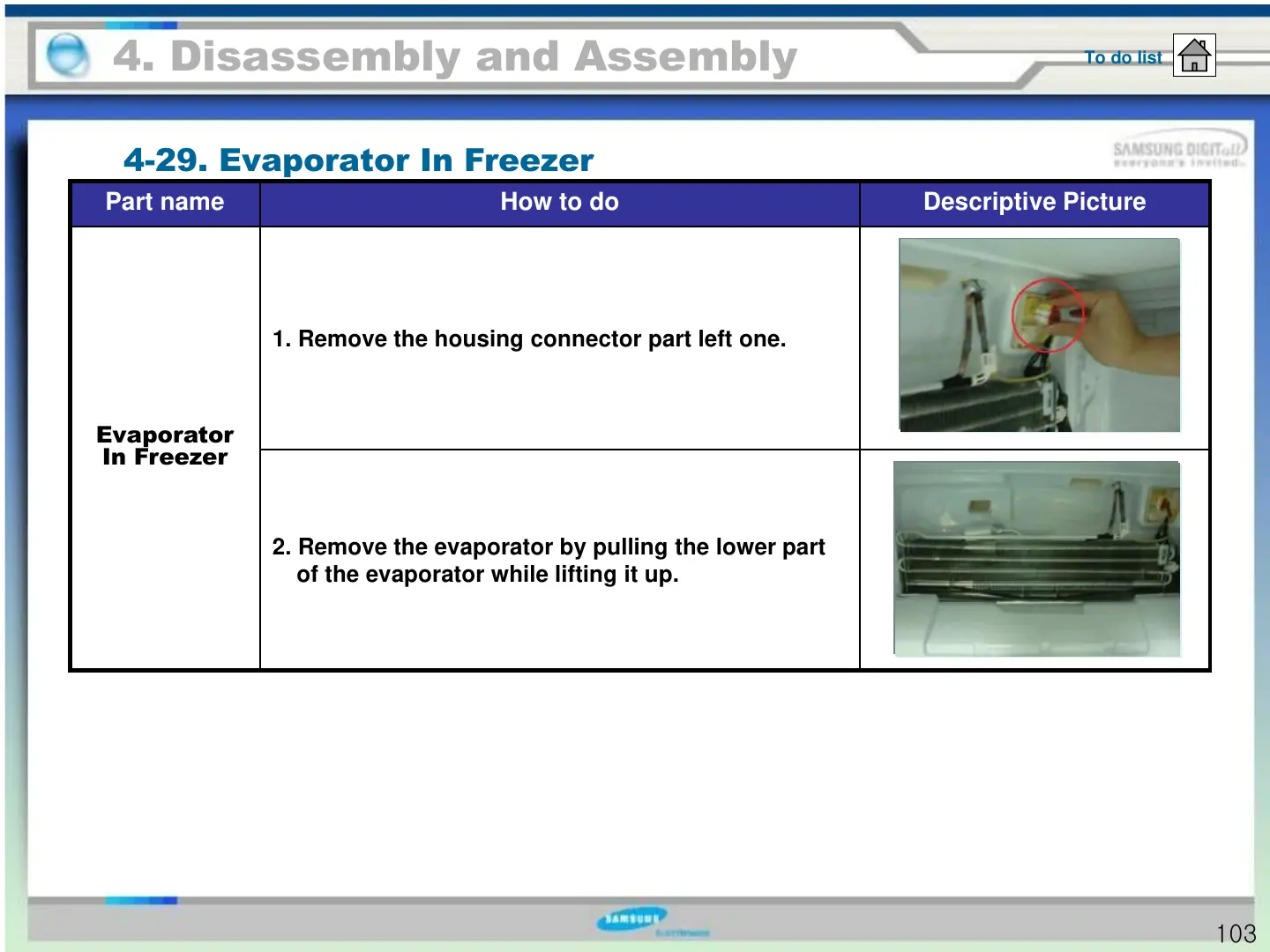

4-29. Evaporator In Freezer
To do list
103
