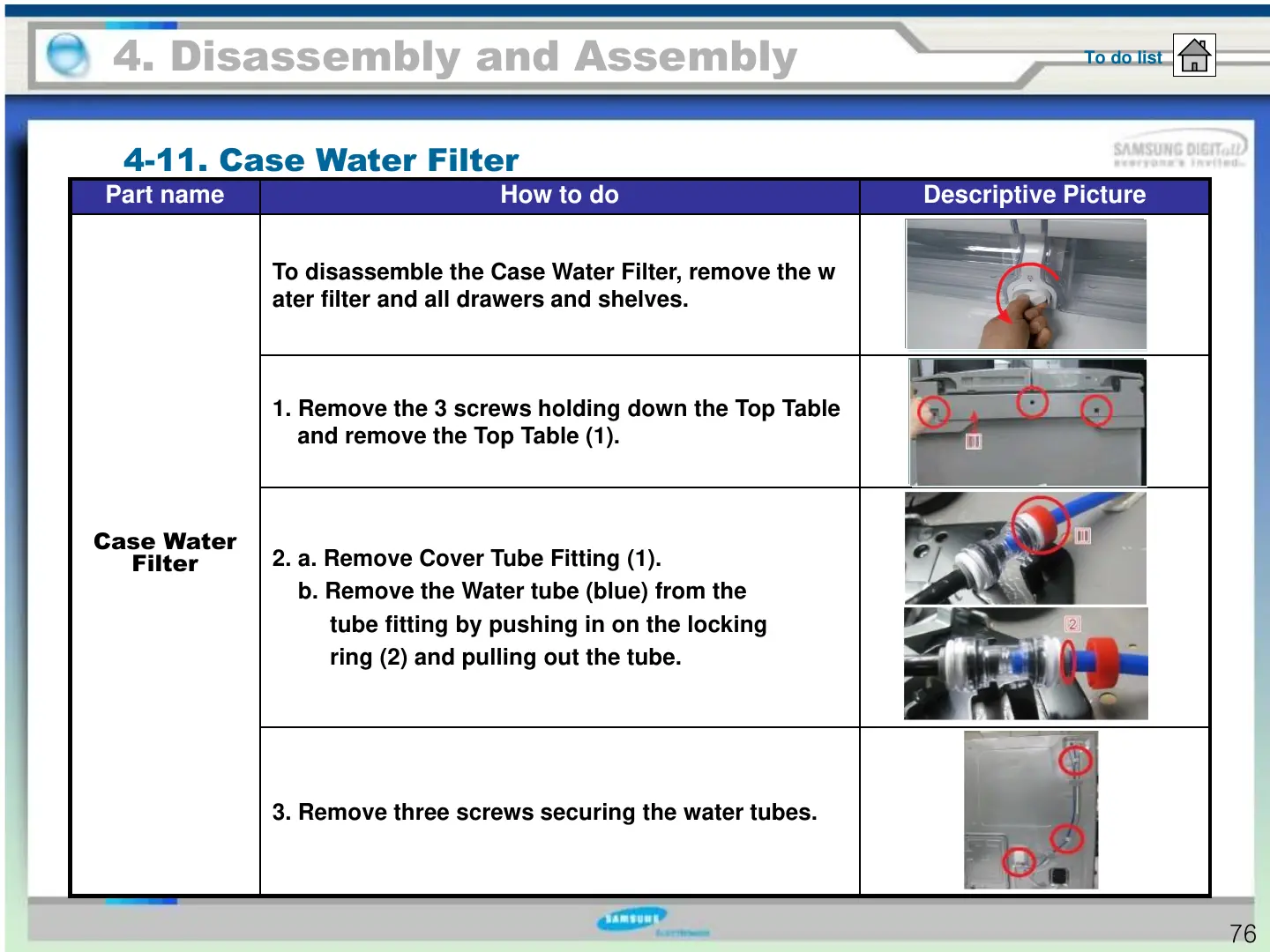

Part name How to do Descriptive Picture
Case Water
Filter
To disassemble the Case Water Filter, remove the w
ater filter and all drawers and shelves.
1. Remove the 3 screws holding down the Top Table
and remove the Top Table (1).
2. a. Remove Cover Tube Fitting (1).
b. Remove the Water tube (blue) from the
tube fitting by pushing in on the locking
ring (2) and pulling out the tube.
3. Remove three screws securing the water tubes.
4. Disassembly and Assembly
4-11. Case Water Filter
