Part name How to do Descriptive Picture
Freezer Door
1. Pull out the Pull Out Drawer by maximum.
2. After lifting the Pull Out Drawer up holding both si
des, remove it at the rail system.
3. Remove the Tilting Pocket(1)by lifting it up
4. After lifting the Freezer Guard up holding both
sides, remove it at the rail system.
4. Disassembly and Assembly

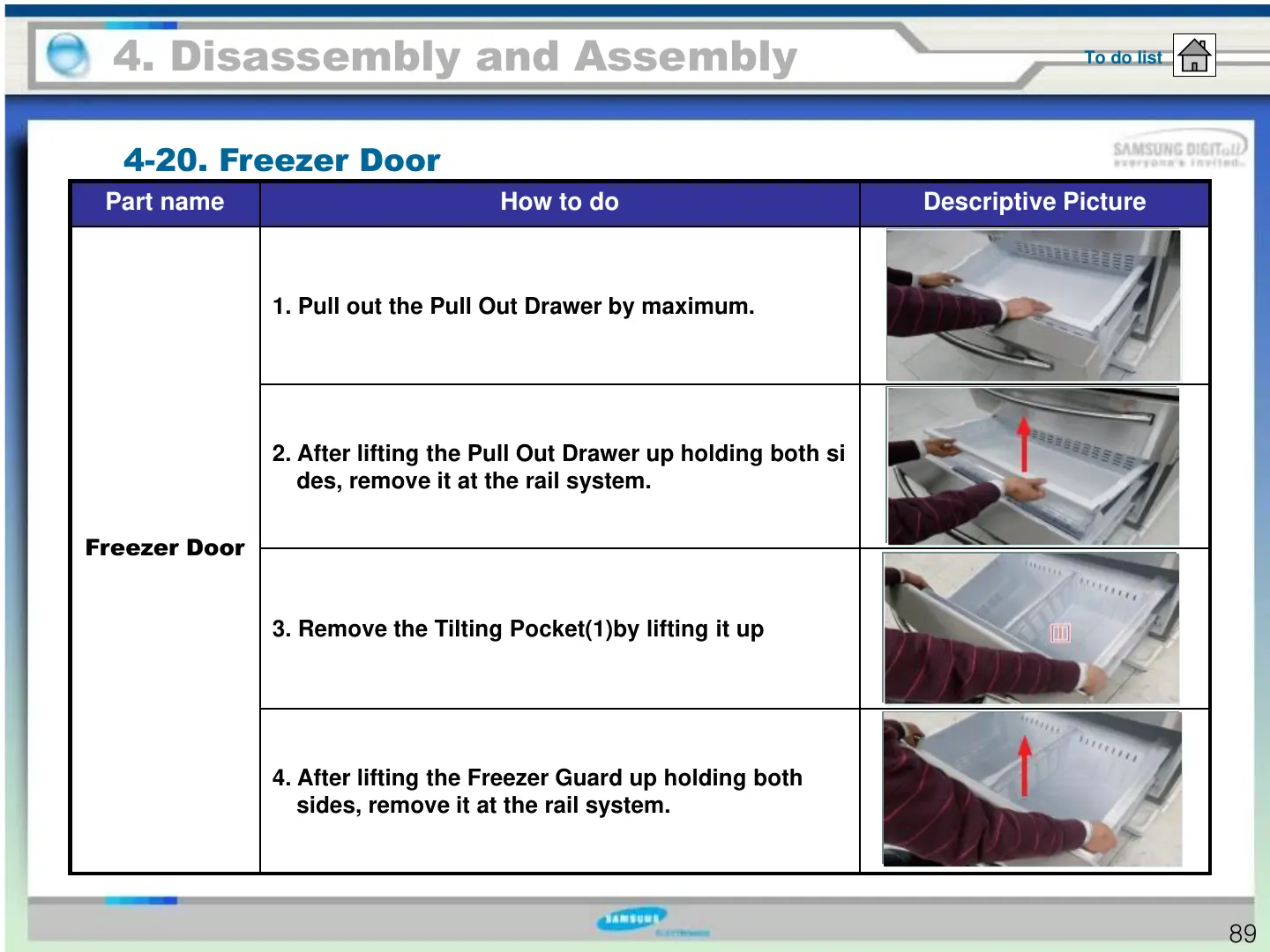

4-20. Freezer Door
To do list
89
