Part name How to do Descriptive Picture
Vertical
Hinged
Section
(center
mullion
attached to
left side
refrigerator
door)
1. Remove 2 screw cap parts with a flat-blade(-)
screwdriver. (Refer to the picture)
2. Unscrew 2 screws.
3. Disengage the internal housing connector of the
vertical hinge.
4. Remove the vertical hinged section by lifting the
vertical hinge up. (Refer to the picture)
4. Disassembly and Assembly

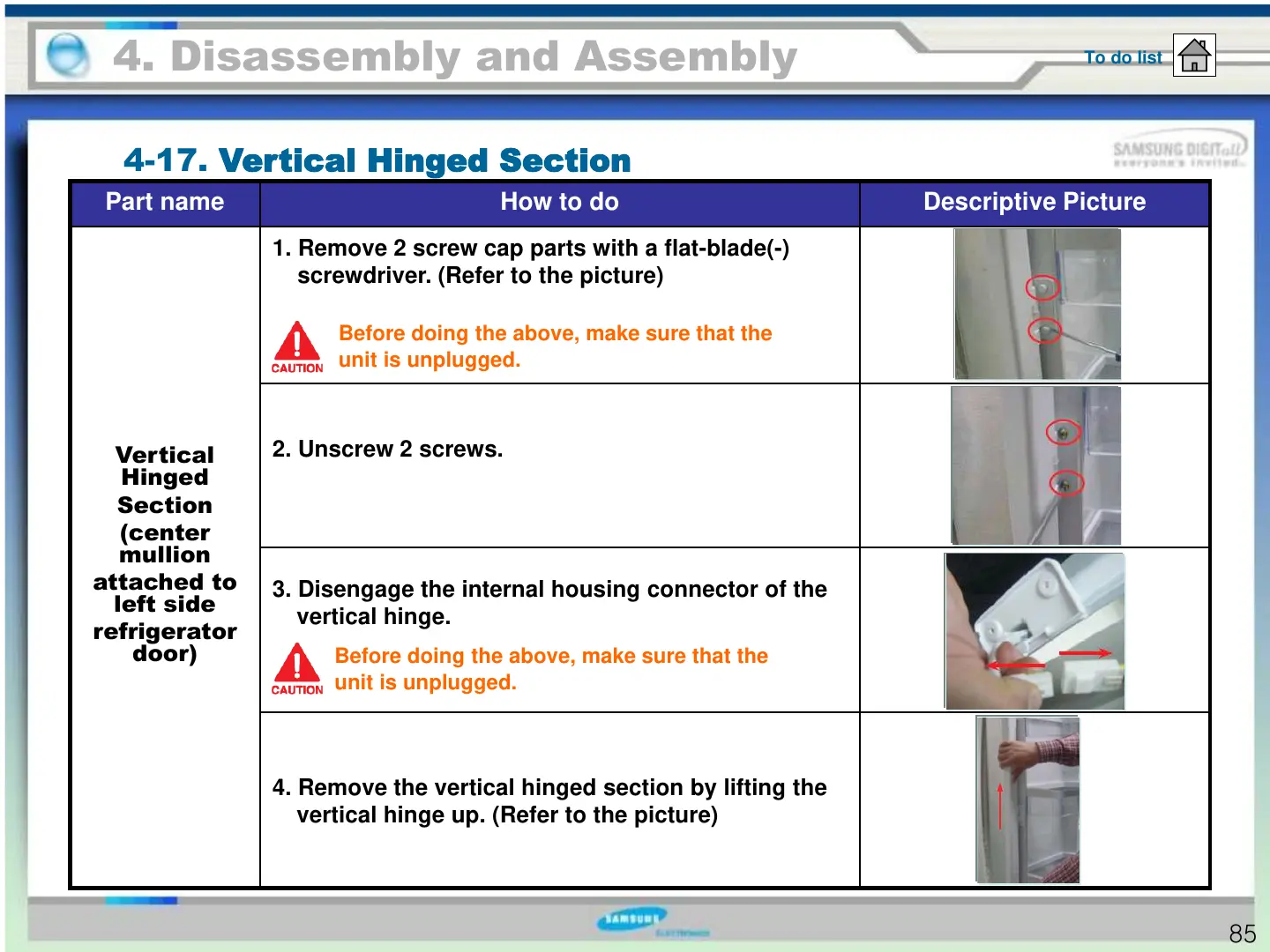

4-17. Vertical Hinged Section
To do list
Before doing the above, make sure that the
unit is unplugged.
85
Before doing the above, make sure that the
unit is unplugged.
