Samsung MKV190CL2B/E01 - Gallon Door bin

Part name How to do Descriptive Picture
Gallon Door
Bin
(SPARKLING
OPTION -
TOP)
1. Remove the Cap.
2. Remove 2 screws of the Gallon Door Bin.
3. Lifting the Gallon Door bin up and pulling it out.
Gallon Door
Bin
(SPARKLING
OPTION –
BOTTOM)
1. Open Cylinder cover.
2. Remove the door bin by moving straight up.
4. Disassembly and Assembly

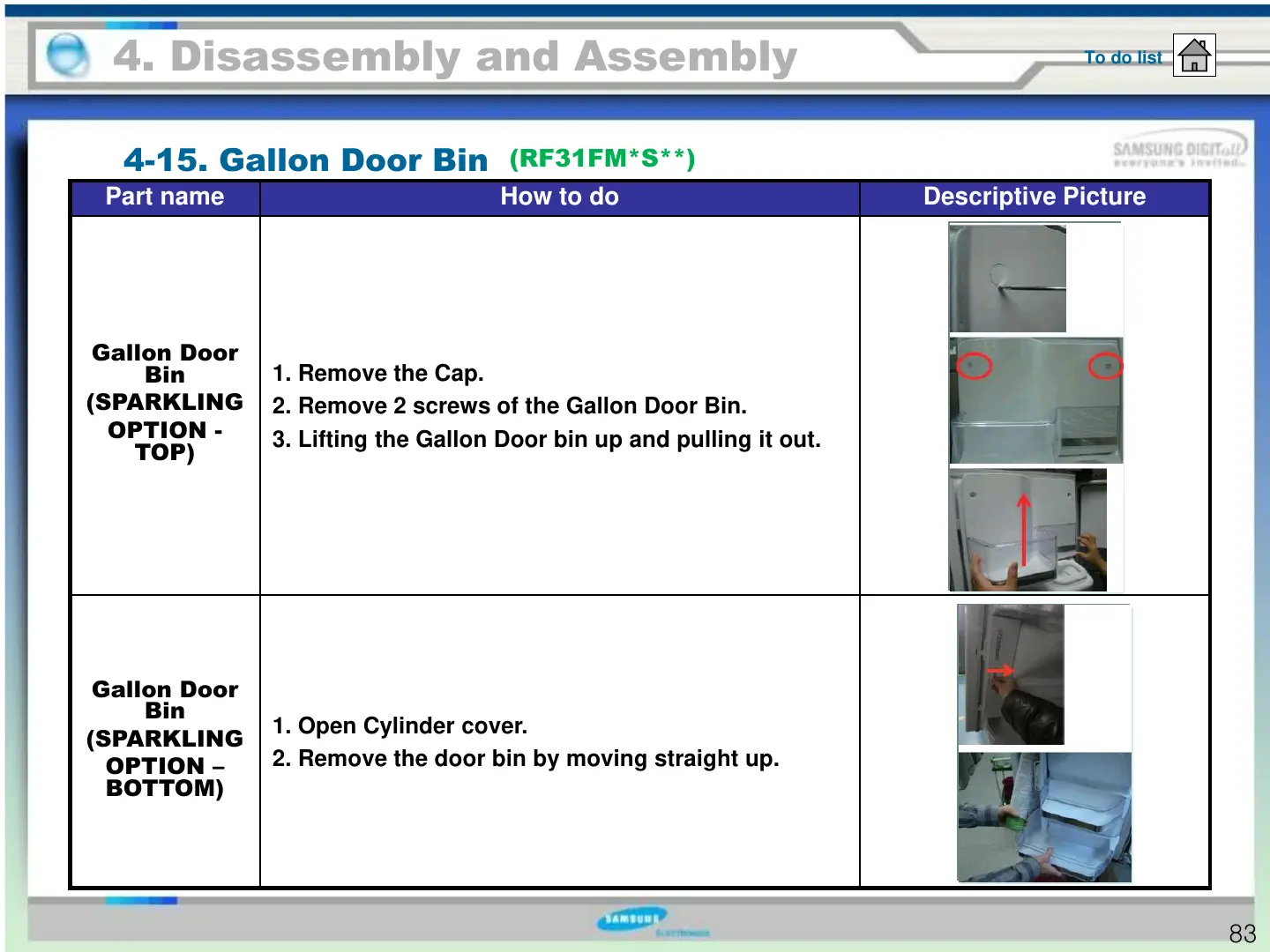

4-15. Gallon Door Bin
To do list
83
(RF31FM*S**)
