Part name How to do Descriptive Picture
Evaporator
Cover In
Refrigerator
1. Remove the angle cap with a flatblade screwdriver.
(Refer to the picture)
2. Loosen the 4 screws, which fix the Evaporator
cover
3. Remove the the lower part of angle mid by pulling
it out and pushing it down. (Refer to the picture)
4. Disassembly and Assembly

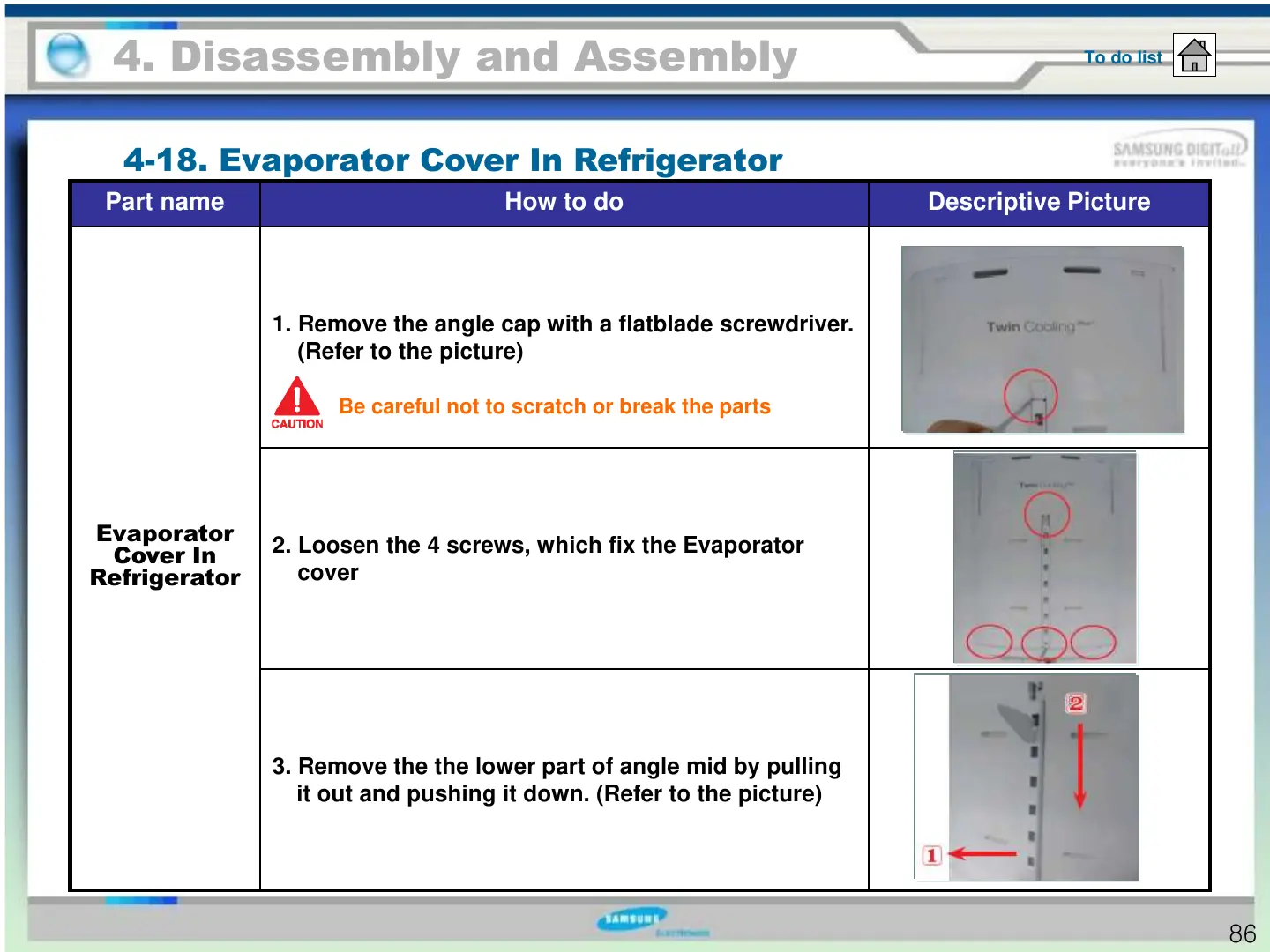

4-18. Evaporator Cover In Refrigerator
To do list
Be careful not to scratch or break the parts
86
